That Seventies
PSP8/9
This tutorial was
written by Jemima ~ March 2007
Copyright © 2007 ~ Jemima
~ All rights reserved
This has been successfully tested using PSPX and PSPXI
********************************
You will need the
following to complete this tutorial
Materials
That 70's Ding BV.ttf
RIGHT CLICK & Save in "WINDOWS/fonts" folder
RIGHT CLICK & Save in PSP Patterns folder
Gold-diz.jgd
RIGHT CLICK & Save in PSP Gradients folder
RIGHT CLICK & Save in PSP Textures folder
@nn_010405_WomanShung_TD.psp
rw-catching_a_morning_breeze~misted
RIGHT CLICK & Save in a folder on your computer
Plugins
** EYE CANDY3 **
http://www.chezkiki.com/les_filtres.htm
http://www.pircnet.com/downloads.html
********************************
SAVE OFTEN .. you never know when PSP will 'hiccup'!
In your MATERIALS PALETTE load
"BouquetOfZinnias"PATTERN in the background and
"Gold-diz" GRADIENTin the foreground using these settings
 ..
If you keep your fonts/dings in a folder other than WINDOWS/Fonts
locate the " That 70's Ding BV" double click on it and minimize to your Task Bar
Open a new image 500 x 450
Transparent background
Change your background to SOLID ORANGE ( #D34131 )
Select your TEXT tool
Type in the letter "K" (Capital)
Click APPLY
Centre your image.... DESELECT
To get it in the dead centre.....
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar
and select PASTE AS NEW LAYER from the options.
In your LAYER PALETTE.. Activate Raster 1 ... EDIT >>> CLEAR
Activate Raster 2
With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 USERS: CHECK CONTIGUOUS

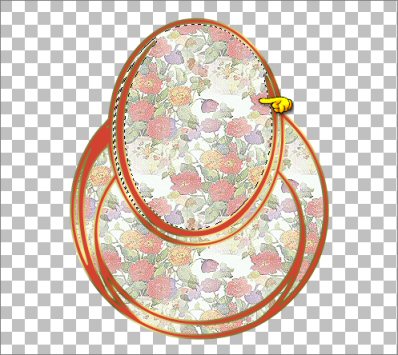

Select the orange circle indicated below
SELECTIONS >>> MODIFY >>> EXPAND = 3
EDIT >>> CLEAR
DESELECT
In your MATERIALS PALETTE change the background back to the "BouquetOfZinnias" PATTERN
With your MAGIC WAND
Same settings
Select the OUTER transparent area
LAYERS >>> NEW RASTER LAYER
LAYERS >>> ARRANGE >>> MOVE DOWN
SELECTIONS >>> INVERT
SELECTIONS >>> MODIFY >>> CONTRACT = 2
Flood fill with "BouquetOfZinnias" PATTERN
EFFECTS >>> EDGE EFFECTS >>> ENHANCE
DESELECT
Activate Raster 2
With your MAGIC WAND ...
Same settings ... select the patterned circle area
SELECTIONS >>> MODIFY >>> EXPAND = 2
Activate Raster 3
EDIT >>> CLEAR
DESELECT
Activate Raster 2
With your MAGIC WAND ... Same settings ...
and depressing your SHIFT key...select the areas shown below
Activate Raster 3
SELECTIONS >>> MODIFY >>> EXPAND = 2

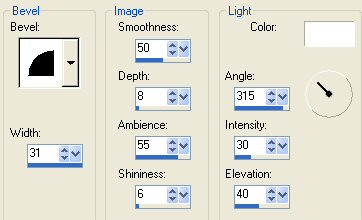

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
DESELECT
Close Raster 1
LAYERS >>> MERGE >>> MERGE VISIBLE
Change your background to SOLID ORANGE ( #D34131 )
LAYERS >>> NEW RASTER LAYER
Select your TEXT tool ...same settings
Type in the letter "G" (Capital)
Click APPLY
DESELECT
Select your DEFORMATION tool ...
Drag the 'centre right' node to the left, then drag the 'centre' node to the left
as shown below. Click one of the other tools to DESELECT
LAYERS >>> DUPLICATE
IMAGE >>> MIRROR
Raster 1 should already be closed... close the Merged Layer
LAYERS >>> MERGE >>> MERGE VISIBLE
LAYERS >>> ARRANGE >>> MOVE DOWN
OPEN & Activate the TOP Merged layer
In your MATERIALS PALETTE change the background back to the "BouquetOfZinnias" PATTERN
Change the SCALE to 50%
LAYERS >>> NEW RASTER LAYER
Select your TEXT tool ...same settings
Type in the letter "G" (Capital)
Click APPLY
DESELECT
Select your DEFORMATION tool ...
Drag the 'centre right' node to the left, then drag the 'centre' node to the left
as shown below. Click one of the other tools to DESELECT
Make sure the shape is directly over the top of the lower one
ADJUST >>> SHARPNESS >>> SHARPEN MORE
EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
Same settings
LAYERS >>> DUPLICATE
IMAGE >>> MIRROR
Close all but the top 2 layers
LAYERS >>> MERGE >>> MERGE VISIBLE
IMAGE >>> RESIZE = 99%
Ensure "Resize all layers" is UNCHECKED
OPEN all layers EXCEPT Raster 1
LAYERS >>> MERGE >>> MERGE VISIBLE
ADJUST >>> SHARPNESS >>> SHARPEN
IMAGE >>> RESIZE = 90%
Ensure "Resize all layers" is UNCHECKED
EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> PERSPECTIVE SHADOW
With your MAGIC WAND
Same settings and depressing your SHIFT key...
Select the CENTRE transparent area including the shadows
EDIT >>> CLEAR
SELECTIONS >>> MODIFY >>> EXPAND = 2
SELECTIONS >>> INVERT
LAYERS >>> NEW RASTER LAYER
LAYERS >>> ARRANGE >>> MOVE DOWN
EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
Activate Raster 1
Flood fill with WHITE
DESELECT
EFFECTS >>> TEXTURE EFFECTS >>> TEXTURE
LAYERS >>> MERGE >>> MERGE VISIBLE
( From this point you can do a variety of results depending on YOUR imagination )
Save as .psp image
Open up the " @nn_010405_WomanShung_TD.psp " tube
Right click on the Title Bar and select COPY from the options
Go to your frame image
Right click on the Title Bar
and select PASTE AS NEW LAYER from the options.
IMAGE >>> RESIZE = 75%
Ensure "Resize all layers" is UNCHECKED

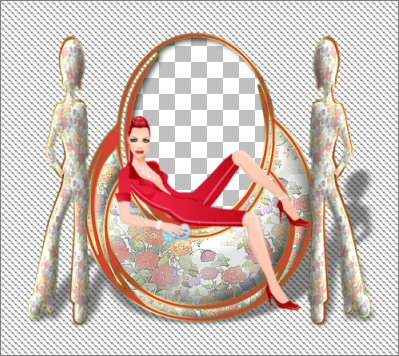

Reposition as shown below and DESELECT
EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
Same settings EXCEPT change DEPTH to 5
EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
Same settings
LAYERS >>> MERGE >>> MERGE VISIBLE
LAYERS >>> NEW RASTER LAYER
LAYERS >>> ARRANGE >>> MOVE DOWN
Flood fill with WHITE
Open the " rw-catching_a_morning_breeze~misted " tube
Right click on the Title Bar and select COPY from the options
Go to your frame image
Right click on the Title Bar
and select PASTE AS NEW LAYER from the options.
Use your MOVER TOOL to reposition the tube
LAYERS >>> MERGE >>> MERGE VISIBLE
LAYERS >>> NEW RASTER LAYER
SELECTIONS >>> SELECT ALL
SELECTIONS >>> MODIFY >>> CONTRACT = 14
SELECTIONS >>> INVERT
Flood fill with the GOLD gradient
EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0
Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK
SELECTIONS >>> MODIFY >>> CONTRACT = 3
Flood fill with the SOLID ORANGE ( #D34131)
SELECTIONS >>> MODIFY >>> CONTRACT = 2
Flood fill with the GOLD gradient
EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0
Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK
DESELECT
EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
With your MAGIC WAND
Same settings
Select the CENTRE of the image
SELECTIONS >>> INVERT
EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
Same settings
DESELECT
LAYERS >>> MERGE >>> MERGE ALL (Flatten)
Save as .jpg image
Another result from the same tutorial
TUTORIAL TESTERS RESULTS
