ASIAN THEME
PSP9 to PSP2020

This tutorial was written by Jemima ~APRIL 2020
Copyright © 2020 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************
The fair use of a copyrighted work for nonprofit educational for purposes such as teaching is not an infringement of copyright.
No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Asian Scene.jpg
Save to a folder on your computer

********************************

Plugins

** NONE **

********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open a new image 800 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX-PSP2020: Colour Depth RGB = 8bits/channel SELECTIONS >>> SELECT ALL Open up the Background252bb image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE INTO SELECTION from the options. . DESELECT PSP9 - PSPX3: IMAGE >>> FLIP PSPX4 - PSP2020: Use script available for download at top of page. (Higher versions follow your version's method) .
STEP 2 LAYERS >>> NEW RASTER LAYER Choose your SELECTION TOOL then click on the CUSTOM SELECTION symbol and enter these coordinates.
STEP 3 Open up the Asian Scene image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE INTO SELECTION from the options. . DESELECT. LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2020: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 4 In your MATERIALS PALETTE Load ORANGE " #e5a56e " in your foreground Load YELLOW " #ffe29e " in your background Choose your SELECTION TOOL On the top menu select 'Create selection from: LAYERS >>> NEW RASTER LAYER
STEP 5 Flood fill with ORANGE SELECTIONS >>> MODIFY >>> CONTRACT = 4 EDIT >>> CLEAR Flood fill with YELLOW SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR Flood fill with ORANGE SELECTIONS >>> MODIFY >>> CONTRACT = 4 EDIT >>> CLEAR DESELECT

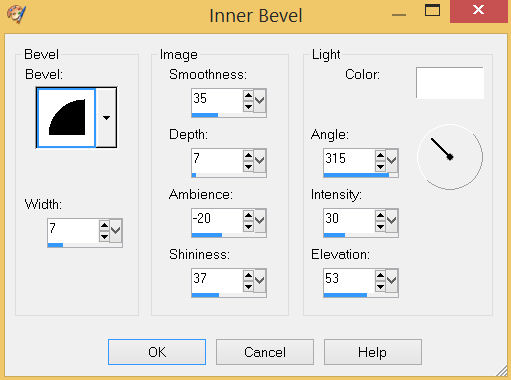

STEP 6 EFFECTS >>> 3D EFFECTS >>> INNER BEVEL COLOUR = WHITE ADJUST >>> SHARPNESS >>> SHARPEN MORE SAVE YOUR WORK
STEP 7 Open up the Border-JF15 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = 235 Edge Mode = Transparent ,
STEP 8 LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> FLIP PSPX4 - PSP2020: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 9 Open up the 143476_B-Lanza image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 68% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 180 Vertical Offset = - ( minus ) 27 Edge Mode = Transparent
STEP 10 Open up the lanterns image in your PSP workspace Choose your SELECTION TOOL Selection Type = Rectangle Mode = Replace Feather = 0 Antialias = UNChecked Select the extreme right lantern Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 335 Vertical Offset = 175 Edge Mode = Transparent
STEP 11 LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2020: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN
STEP 12 Back to the lanterns image in your PSP workspace Choose your SELECTION TOOL Select the 2nd from the left lantern Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = 220 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 13 Open up the crane image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 65% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN ,
STEP 14 PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2020: Use script available for download at top of page. (Higher versions follow your version's method) EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 130 Vertical Offset = - ( minus ) 110 Edge Mode = Transparent SAVE YOUR WORK
STEP 15 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 7 Colour = Black Opacity = 65 Blur = 20.00 ACTIVATE Raster 6 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 5 EDIT >>> Repeat Drop Shadow Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 7
STEP 16 ACTIVATE Raster 4 LAYERS >>> MERGE >>> MERGE DOWN EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 7 Colour = Black Opacity = 65 Blur = 20.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 7 LAYERS >>> MERGE >>> MERGE VISIBLE SAVE YOUR WORK
STEP 17 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL Flood fill with ORANGE SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR Flood fill with YELLOW SELECTIONS >>> MODIFY >>> CONTRACT = 5 EDIT >>> CLEAR Flood fill with ORANGE SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR DESELECT EFFECTS >>> 3D EFFECTS >>> INNER BEVEL Same settings ADJUST >>> SHARPNESS >>> SHARPEN MORE
STEP 18 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 7 Colour = Black Opacity = 85 Blur = 15.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 7 LAYERS >>> MERGE >>> MERGE DOWN ,
STEP 19 LAYERS >>> NEW RASTER LAYER SELECT your TEXT tool With a font of your choice add your name ,
STEP 20 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,

TESTERS RESULTS
