DECORATIVE FRAME
PSP9 to PSP2020

This tutorial was written by Jemima ~MARCH 2020
Copyright © 2020 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************
The fair use of a copyrighted work for nonprofit educational for purposes such as teaching is not an infringement of copyright.
No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

quiet time.jpg
Blue Abstract1.jpg
Blue Abstract12.jpg
Save to a folder on your computer

********************************

Plugins
SIMPLE
** PLUGINS_LINKS **
HERE

********************************

You can drag this hand down the page with you to keep your place in the tut.

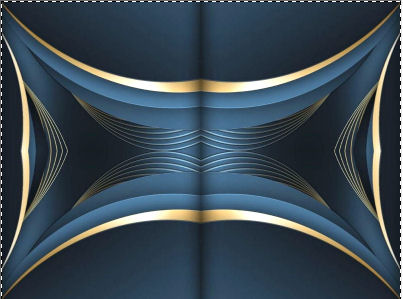

STEP 1 Open a new image 800 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX - PSP2020: Colour Depth RGB = 8bits/channel SELECTIONS >>> SELECT ALL Open up the Blue Abstract1 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR ADJUST >>> BRIGHTNESS and CONTRAST >>> BRIGHTNESS/CONTRAST Brightness = 43 Contrast = 28 PSPX6-PSP2019: Linear mode checked DO NOT DESELECT
STEP 2 LAYERS >>> NEW RASTER LAYER Open up the Blue Abstract12 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. DESELECT IMAGE >>> RESIZE = 90% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN MORE SAVE YOUR WORK
STEP 3 Choose your SELECTION TOOL On the top menu select 'Create selection from: LAYERS >>> NEW RASTER LAYER ,
STEP 4 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Colour = #d6cfca Height = 7 Width = 7 Opacity = 100 Edge = Solid DESELECT EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR ADJUST >>> SHARPNESS >>> SHARPEN MORE
STEP 5 Open up the frame-53f image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. LAYERS >>> DUPLICATE PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSP2020: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED LAYERS >>> MERGE >>> MERGE DOWN
STEP 6 IMAGE >>> RESIZE = 98% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN SAVE YOUR WORK
STEP 7 Open up the corner011 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 295 Vertical Offset = 192 Edge Mode = Transparent
STEP 8 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR SAVE YOUR WORK
STEP 9 ACTIVATE Raster 4 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - PSP2019: Check CONTIGUOUS PSPX - PSP2019: There is no " Sample Merged" PSP9 - PSP2019: Use all layers = UNChecked Select the CENTRE of your image SELECTIONS >>> MODIFY >>> EXPAND = 5
STEP 10 ACTIVATE Raster 2 EDIT >>> Clear ACTIVATE Raster 1 EDIT >>> Repeat Clear DESELECT
STEP 11 ACTIVATE Raster 4 With your MAGIC WAND Mode = ADD (Shift) Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - PSP2019: Check CONTIGUOUS PSPX - PSP2019: There is no " Sample Merged" PSP9 - PSP2019: Use all layers = UNChecked, Select the areas indicated
STEP 12 SELECTIONS >>> MODIFY >>> EXPAND = 6 ACTIVATE Raster 2 LAYERS >>> NEW RASTER LAYER Open up the abstractpatt-2ee07 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. DESELECT SAVE YOUR WORK
STEP 13 ACTIVATE Raster 5 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 70 Blur = 10.00 ACTIVATE Raster 4 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 3 EDIT >>> Repeat Drop Shadow Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 2 ACTIVATE Raster 4 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 5 EDIT >>> Repeat Drop Shadow SAVE YOUR WORK
STEP 14 LAYERS >>> MERGE >>> MERGE VISIBLE LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Colour = #d6cfca Height = 4 Width = 4 Opacity = 100 Edge = Solid SELECTIONS >>> MODIFY >>> CONTRACT = 8 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings DESELECT ,
STEP 15 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR ADJUST >>> SHARPNESS >>> SHARPEN MORE EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 70 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 2 LAYERS >>> MERGE >>> MERGE DOWN Save as .pspimage image
STEP 16 Open up the quiet time image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. LAYERS >>> ARRANGE >>> MOVE DOWN LAYERS >>> MERGE >>> MERGE VISIBLE
STEP 17 LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name,
STEP 18 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,
