STEP 1
Open a new image 800 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX - PSP2019: Colour Depth RGB = 8bits/channel
SELECTIONS >>> SELECT ALL
Open up the abstract-4368 image in your PSP workspace
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar of your frame image
and select PASTE INTO SELECTION from the options.
DESELECT
.
|
STEP 2
LAYERS >>> DUPLICATE
PSP9 - PSPX3: IMAGE >>> FLIP
PSPX4 - PSPX8: Use script available for download at top of page.
(Higher versions follow your version's method)
EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
IMAGE >>> RESIZE = 85%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
ADJUST >>> SHARPNESS >>> SHARPEN
SAVE YOUR WORK |
|
STEP 3
In your MATERIALS PALETTE
Load ORANGE " #d93e05 " in your foreground
Load YELLOW " #eab50b " in your background
, |
STEP 4
CLOSE Copy of Raster 1
ACTIVATE Raster 1
EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR
Horizontal Offset = 0
Vertical Offset = n/a
Rotation Angle = 0
Edge Mode = Reflect
OPEN & ACTIVATE Copy of Raster 1
Choose your SELECTION TOOL
On the top menu select 'Create selection from:
 , |
|
STEP 5
LAYERS >>> NEW RASTER LAYER
Flood fill with ORANGE
SELECTIONS >>> MODIFY >>> CONTRACT = 5
EDIT >>> CLEAR
Flood fill with YELLOW
SELECTIONS >>> MODIFY >>> CONTRACT = 10
EDIT >>> CLEAR
Flood fill with ORANGE
SELECTIONS >>> MODIFY >>> CONTRACT = 5
EDIT >>> CLEAR
DESELECT, |
|
STEP 6
With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 - PSP2019: Check CONTIGUOUS
PSPX - PSP2019: There is no " Sample Merged"
PSP9 - PSP2019: Use all layers = UNChecked
Select the YELLOW border

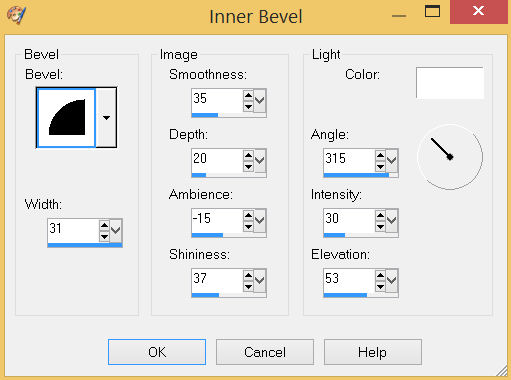

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
EFFECTS >>> EDGE EFFECTS >>> ENHANCE
DESELECT
SAVE YOUR WORK
,
|
STEP 7
LAYERS >>> DUPLICATE
IMAGE >>> RESIZE = 85%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
With your MAGIC WAND... Same settings
Select the centre of your image |
|
STEP 8
ACTIVATE Copy of Raster 1
Right click on the Title Bar and select COPY from the options
LAYERS >>> NEW RASTER LAYER
Right click on the Title Bar of your frame image
and select PASTE INTO SELECTION from the options
DESELECT
With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 35
Feather = 2
Antialias = Checked
Sample Merged = UNCHECKED
PSP9 - PSP2019: Check CONTIGUOUS
PSPX - PSP2019: There is no " Sample Merged"
PSP9 - PSP2019: Use all layers = UNChecked
PSP9 - PSP2019: ANTIALIAS = Outside
Select the area indicated
 , |
STEP 9
EDIT >>> CLEAR
ACTIVATE Copy of Raster 1
EDIT >>> CLEAR
ACTIVATE Raster 1
EDIT >>> CLEAR
DESELECT
Choose your SELECTION TOOL
then click on the CUSTOM SELECTION symbol
and enter these coordinates.
, |
|
STEP 10
EDIT >>> CLEAR
ACTIVATE Copy of Raster 1
EDIT >>> CLEAR
ACTIVATE Raster 3
EDIT >>> CLEAR
DESELECT
SAVE YOUR WORK
, |
STEP 11
ACTIVATE Raster 1
EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
ADJUST >>> SHARPNESS >>> SHARPEN MORE
EDIT >>> Repeat Sharpen More
, |
|
STEP 12
ACTIVATE Raster 2
Right click on the Title Bar and select COPY from the options
ACTIVATE Copy of Raster 2
LAYERS >>> NEW RASTER LAYER
SELECTIONS >>> SELECT ALL
Right click on the Title Bar of your frame image
and select PASTE INTO SELECTION from the options.
DESELECT, |
|
STEP 13
ACTIVATE Copy of Raster 1
EFFECTS >>> DISTORTION EFFECTS >>> PIXELATE
Block width = 17
Block height = 10
Symmetric = UNChecked
EFFECTS >>> EDGE EFFECTS >>> ENHANCE MORE |
|
STEP 14
ACTIVATE Raster 4
EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 6
Colour = Black
Opacity = 65
Blur = 10.00
ACTIVATE Copy of Raster 2
EDIT >>> Repeat Drop Shadow
ACTIVATE Raster 2
EDIT >>> Repeat Drop Shadow
ACTIVATE Raster 3
EDIT >>> Repeat Drop Shadow
Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 6
ACTIVATE Raster 2
EDIT >>> Repeat Drop Shadow
ACTIVATE Copy of Raster 2
EDIT >>> Repeat Drop Shadow
ACTIVATE Raster 4
EDIT >>> Repeat Drop Shadow
SAVE YOUR WORK |
|
STEP 15
Open up the UV_Expander image in your PSP workspace
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.
IMAGE >>> RESIZE = 30%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
Same settings
BUT
Change DEPTH = 10
|
|
STEP 16
EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus ) 310
Vertical Offset = 215
Edge Mode = Transparent
EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR, |
|
STEP 17
Open up the logoBN4_3079 image in your PSP workspace
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.
PSP9 - PSPX3: IMAGE >>> MIRROR
PSPX4 - PSPX8: Use script available for download at top of page.
(Higher versions follow your version's method)
IMAGE >>> RESIZE = 25%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
Same settings
EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus ) 307
Vertical Offset = 232
Edge Mode = Transparent
|
|
STEP 18
EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 3
Colour = Black
Opacity = 65
Blur = 10.00
ACTIVATE
Raster 5
EDIT >>> Repeat Drop Shadow
SAVE YOUR WORK |
|
STEP 19
CLOSE Raster 1
CLOSE Copy of Raster 1
CLOSE Raster 3
LAYERS >>> MERGE >>> MERGE VISIBLE
OPEN Raster 1
OPEN & ACTIVATE Copy of Raster 1
LAYERS >>> MERGE >>> MERGE DOWN
OPEN
Raster 3
Save as .pspimage image
,
|
STEP 20
Open up the Blue_Mosque_Dusk image in your PSP workspace
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options
IMAGE >>> RESIZE = 87%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
LAYERS >>> ARRANGE >>> MOVE DOWN
ADJUST >>> SHARPNESS >>> SHARPEN
|
|
STEP 21
ACTIVATE Raster 3
Open up the arab-d6 image in your PSP workspace
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options
IMAGE >>> RESIZE = 55%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
Reposition with your MOVER tool
ADJUST >>> SHARPNESS >>> SHARPEN,
|
|
STEP 22
EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 6
Colour = Black
Opacity = 65
Blur = 10.00
, |
STEP 23
Open up the arab-81 image in your PSP workspace
Right click on the Title Bar and select COPY from the options
Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options
IMAGE >>> RESIZE = 35%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
Reposition with your MOVER tool
ADJUST >>> SHARPNESS >>> SHARPEN
Repeat Drop Shadow ,, |
|
STEP 24
LAYERS >>> MERGE >>> MERGE VISIBLE
LAYERS >>> NEW RASTER LAYER
Select your TEXT tool
and with a font of your choice add your name |
|
STEP 25
LAYERS >>> MERGE >>> MERGE ALL (Flatten)
Save as .jpg image
, |
| |
|
| |
|
