EASTERN FRAME
PSP9 to PSP2019

This tutorial was written by Jemima ~SEPTEMBER 2019
Copyright © 2019 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

abstract deco.png
diamond deco.png
eastern frame element.png
Save to a folder on your computer

********************************

Plugins
SIMPLE
** PLUGINS_LINKS **
HERE

********************************

SCRIPTS FOR FLIP & MIRROR IN PSPX4 TO PSPX8

DOWNLOAD


You can drag this hand down the page with you to keep your place in the tut.





STEP 1

Open a new image 800 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX - PSP201
9: Colour Depth RGB = 8bits/channel


VIEW >>> RULERS

Choose your SELECTION TOOL
then click on the CUSTOM SELECTION symbol
and enter these coordinates.
.

STEP 2

Open up the wallpaper_607 image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE INTO SELECTION from the options.


DESELECT

LAYERS >>> DUPLICATE

PSP9 - PSPX3: IMAGE >>> FLIP
PSPX4 - PSPX8: Use script available for download at top of page.
(Higher versions follow your version's method)


LAYERS >>> MERGE >>> MERGE DOWN ,
STEP 3

With your MAGIC WAND
Mode =
ADD (Shift)
Match Mode = RGB Value
Tolerance = 30
Feather =
3
Antialias =
Checked
Sample Merged = UNCHECKED
PSP9 - PSP2019: Check CONTIGUOUS
PSPX
- PSP2019: There is no " Sample Merged"
PSP9 - PSP2019: Use all layers = UNChecked
PSP9 - PSP2019: ANTIALIAS = Outside


Select the BLACK areas indicated ,
STEP 4

EDIT >>> CLEAR
EDIT >>> Repeat Clear

DESELECT

SAVE YOUR WORK
STEP 5

Select your RASTER DEFORM tool
Mode = SCALE
use default settings

PSPX - PSP2019:Select your PICK tool


Move the centre left node level with the 50 pixel mark on your top ruler
Move the centreright node level with the 750 pixel mark on your top ruler

Move the centre top node level with the 30 pixel mark on your left ruler
Move the centre bottom node level with the 570 pixel mark on your left ruler



Click the RESET RECTANGLE arrow

Select another tool to disengage the DEFORMATION / PICK TOOL


SAVE YOUR WORK,
STEP 6

LAYERS >>> NEW RASTER LAYER

Flood fill with BROWN #7c4625

LAYERS >>> ARRANGE >>> MOVE DOWN

LAYERS >>> NEW RASTER LAYER

Choose your SELECTION TOOL
then click on the CUSTOM SELECTION symbol
and enter these coordinates.
.

STEP 7

Open up the lines_0184
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE INTO SELECTION from the options.

DESELECT

EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR
Horizontal Offset = 0
Vertical Offset = n/a
Rotation Angle =
180
Edge Mode =
Reflect
,
STEP 8

LAYERS >>> DUPLICATE

PSP9 - PSPX3: IMAGE >>> FLIP
PSPX4 - PSPX8: Use script available for download at top of page.
(Higher versions follow your version's method)


LAYERS >>> MERGE >>> MERGE DOWN

SAVE YOUR WORK
STEP 9

ACTIVATE Raster 1

Open up the eastern frame element image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
85
Vertical Offset = 15
Edge Mode =
Transparent
STEP 10

EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR
Horizontal Offset = 0
Vertical Offset = n/a
Rotation Angle =
180
Edge Mode =
Reflect



SAVE YOUR WORK
STEP 11

ACTIVATE Raster 1

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
5
Colour = Black
Opacity = 70
Blur =
12
.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
5

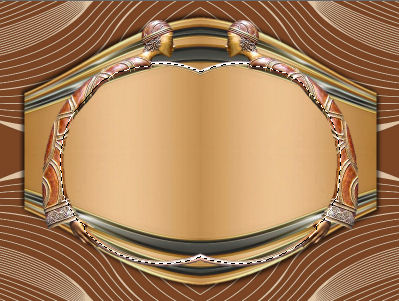

STEP 12

ACTIVATE Raster 4

With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather =
2
Antialias =
Checked
Sample Merged = UNCHECKED
PSP9 - PSP2019: Check CONTIGUOUS
PSPX
- PSP2019: There is no " Sample Merged"
PSP9 - PSP2019: ANTIALIAS = Outside


Select the CENTRE of your image

SELECTIONS >>> MODIFY >>> EXPAND = 6
STEP 13

ACTIVATE Raster 1
EDIT >>> CLEAR

ACTIVATE Raster 3
EDIT >>>
Repeat Clear

ACTIVATE Raster 2
EDIT >>> Repeat Clear
DESELECT
STEP 14

ACTIVATE Raster 4

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
5
Colour = Black
Opacity = 70
Blur = 12
.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
5

LAYERS >>> MERGE >>> MERGE VISIBLE


SAVE YOUR WORK
STEP 15

Open up the abstract deco
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE =
20%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN


EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
315
Vertical Offset =
210
Edge Mode =
Transparent

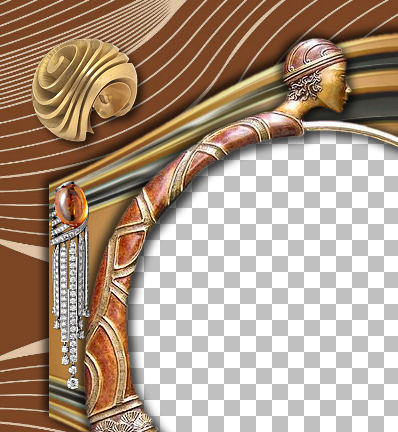

STEP 16

EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
5
Colour = Black
Opacity = 70
Blur = 12
.00

SAVE YOUR WORK

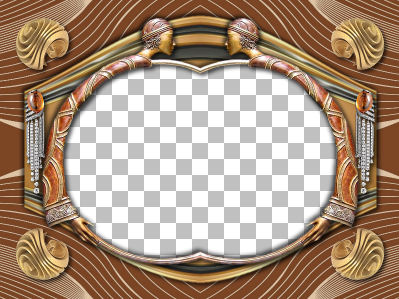

STEP 17

Open up the diamond deco image in your PSP workspace

Choose your SELECTION TOOL
Selection Type = Rectangle
Mode = Replace
Feather = 0
Antialias = UNChecked

Select the left image

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE =
50%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN
MORE

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
3
30
Vertical Offset =
15
Edge Mode =
Transparent
,
STEP 18

LAYERS >>> DUPLICATE

PSP9 - PSPX3: IMAGE >>> MIRROR
PSPX4 - PSPX8: Use script available for download at top of page.
(Higher versions follow your version's method)

LAYERS >>> MERGE >>> MERGE DOWN

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
5
Colour = Black
Opacity = 70
Blur = 12
.00
STEP 19

LAYERS >>> NEW RASTER LAYER
SELECTIONS >>> SELECT ALL

Flood fill with BROWN #7c4625
SELECTIONS >>> MODIFY >>> CONTRACT = 5
EDIT >>> CLEAR


Flood fill with
CREAM #dfc3a6
SELECTIONS >>> MODIFY >>> CONTRACT = 5
EDIT >>> CLEAR


Flood fill with BROWN #7c4625
SELECTIONS >>> MODIFY >>> CONTRACT = 5
EDIT >>> CLEAR

DESELECT
STEP 20

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 5
Colour = Black
Opacity = 70
Blur = 12.00


Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
5

LAYERS >>> MERGE >>> MERGE VISIBLE

Save as .pspimage image

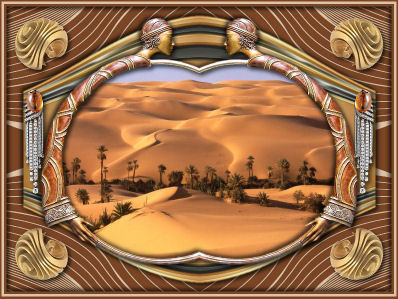

STEP 21

Open up the Desert-Oasis
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options

IMAGE >>> RESIZE =
80%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

LAYERS >>> ARRANGE >>> MOVE DOWN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
0
Vertical Offset = - ( minus ) 7
0
Edge Mode =
Transparent

STEP 22

Open up the arab-298
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options

IMAGE >>> RESIZE =
40%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
0
Vertical Offset = - ( minus ) 7
0
Edge Mode =
Transparent
,
STEP 23

Open up the arab-656 image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options

IMAGE >>> RESIZE = 40%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
100
Vertical Offset = - ( minus )
130
Edge Mode =
Transparent


LAYERS >>> MERGE >>> MERGE VISIBLE

STEP 24

LAYERS >>> NEW RASTER LAYER

Select your TEXT tool
and with a font of your choice add your name
,
STEP 25

LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image

,
