BRONZE_GOLD FRAME
PSP9 to PSP2019

This tutorial was written by Jemima ~MAY 2019
Copyright © 2019 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

eastern portrait.jpg
Save to a folder on your computer

Save to your PSP Patterns folder
********************************


Plugins
MuRa's Filter Meister
SIMPLE
** PLUGINS_LINKS **
HERE

********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open a new image 800 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX - PSP2019: Colour Depth RGB = 8bits/channel Open up the BG_Elements image in your PSP workspace Choose your SELECTION TOOL Selection Type = Rectangle Mode = Replace Feather = 0 Antialias = UNChecked Select the centre element Right click on the Title Bar and select COPY from the options (Minimize for now) Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 50% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN
STEP 2 EFFECTS >>> PLUGINS >>> MuRa's Filter Meister >>> Copies >>> Encircle SAVE YOUR WORK
STEP 3 ACTIVATE Raster 1 SELECTIONS >>> SELECT ALL Open up the wallpaper-c6e1 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. DESELECT EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 0 Edge Mode = Reflect
STEP 4 LAYERS >>> NEW RASTER LAYER, SELECTIONS >>> SELECT ALL Open up the wallpaper-7f73 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. DESELECT EFFECTS >>> DISTORTION EFFECTS >>> PUNCH Strength = 100% EDIT >>> Repeat Punch
STEP 5 EFFECTS >>> EDGE EFFECTS >>> ENHANCE EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 0 Edge Mode = Reflect In your LAYER PALETTE change the BLEND MODE to LIGHTEN SAVE YOUR WORK

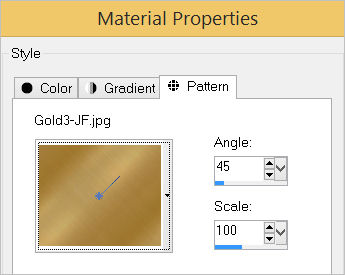

STEP 6 In your MATERIALS PALETTE load Gold3-JF pattern in the foreground using these settings and BLACK in your background
STEP 7 ACTIVATE Raster 2 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL Flood fill with BLACK SELECTIONS >>> MODIFY >>> CONTRACT = 2 EDIT >>> CLEAR Flood fill with Gold3-JF Pattern SELECTIONS >>> MODIFY >>> CONTRACT = 5 EDIT >>> CLEAR Flood fill with BLACK SELECTIONS >>> MODIFY >>> CONTRACT = 2 EDIT >>> CLEAR DESELECT ADJUST >>> SHARPNESS >>> SHARPEN MORE EDIT >>> Repeat Sharpen More SAVE YOUR WORK
STEP 8 ACTIVATE Raster 2 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 1 Colour = Black Opacity = 100 Blur = 0.00
STEP 9 Back to the BG_Elements image in your PSP workspace (The centre image should still be selected) Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 330 Vertical Offset = 150 Edge Mode = Transparent EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
STEP 10 LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 75% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 11 Back to the BG_Elements image in your PSP workspace Select the lower element Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 330 Vertical Offset = 0 Edge Mode = Transparent LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSPX8: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN EDIT >>> Repeat Layer Merge Down
STEP 12 Back to the BG_Elements image in your PSP workspace Select the upper element Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 330 Vertical Offset = 85 Edge Mode = Transparent EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 13 Back to the BG_Elements image in your PSP workspace Select the lower element Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSP2019: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = 275 Edge Mode = Transparent,
STEP 14 LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> FLIP PSPX4 - PSPX8: Use script available for download at top of page. (Higher versions follow your version's method) PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSPX8: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 15 ACTIVATE Raster 2 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = Checked Sample Merged = UNCHECKED PSP9 - PSP2019: Check CONTIGUOUS PSPX - PSP2019: There is no " Sample Merged" PSP9 - PSP2019: Use all layers = UNChecked PSP9 - PSP2019: ANTIALIAS = Outside Select the CENTRE of your image SELECTIONS >>> MODIFY >>> EXPAND = 3
STEP 16 ACTIVATE Raster 3 EDIT >>> CLEAR ACTIVATE Raster 1 EDIT >>> Repeat Cear ACTIVATE Raster 2 SELECTIONS >>> INVERT EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 5 Colour = Black Opacity = 50 Blur = 12.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 5 DESELECT
STEP 17 With your MAGIC WAND ... Same settings Select the area outside the circular frame SELECTIONS >>> INVERT SELECTIONS >>> MODIFY >>> CONTRACT = 2 Repeat BOTH Drop Shadows DESELECT SAVE YOUR WORK
STEP 18 ACTIVATE Raster 5 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 5 Colour = Black Opacity = 50 Blur = 12.00 ACTIVATE Raster 6 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 4 EDIT >>> Repeat Drop Shadow Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 5 LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image
STEP 19 Open up the eastern portrait image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN LAYERS >>> ARRANGE >>> MOVE DOWN Reposition down with your MOVER tool
STEP 20 ACTIVATE the Merged layer LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name ,
STEP 21 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,

TESTERS RESULTS
