AUTUMN CALLING
PSP9 to PSP2019

This tutorial was written by Jemima ~ OCTOBER 2018
Copyright © 2018 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Save to a folder on your computer

********************************

Plugins
MIRROR RAVE
SIMPLE
** PLUGINS_LINKS **
HERE

********************************

You can drag this hand down the page with you to keep your place in the tut.

COLOURS USED

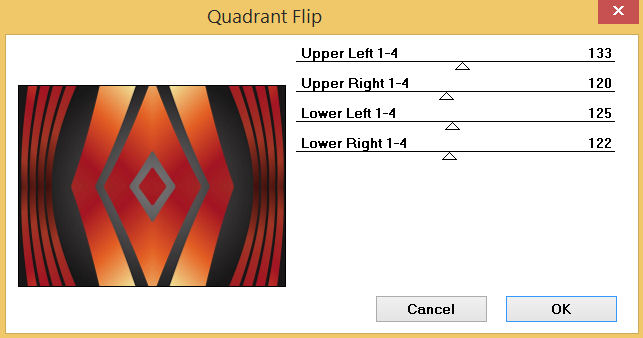

STEP 1 Open up the VectorPortal-Curvespg image in your PSP workspace WINDOW >>> DUPLICATE Close the original Image LAYERS >>> Promote background layer. PSP9 - PSPX3: IMAGE >>> FLIP PSPX4 - PSP2019: Use script available for download at top of page. (Higher versions follow your version's method) EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip .

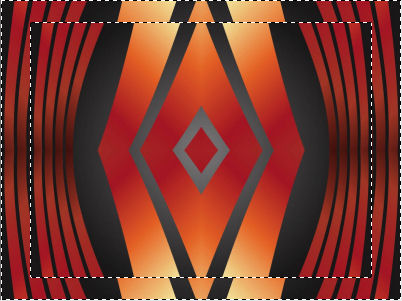

STEP 2 LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 85 % Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - PSP2019: Check CONTIGUOUS PSPX - PSP2019: There is no " Sample Merged" PSP9 - PSP2019: Use all layers = UNChecked Select the OUTER area indicated

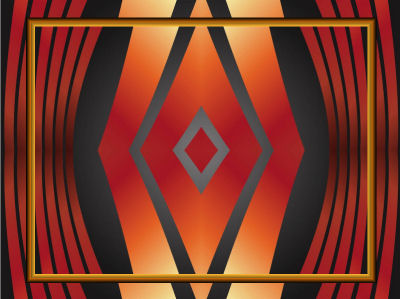

STEP 3 SELECTIONS >>> INVERT LAYERS >>> NEW RASTER LAYER EFFECTS >>> 3D EFFECTS >>> CHISEL Size = 10 Transparent = UNchecked Solid Color = Checked Color = ORANGE #e6780b EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Height = 8 Width = 8 Opacity = 100 Edge = Solid COLOUR = YELLOW #fdb52e DESELECT EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings

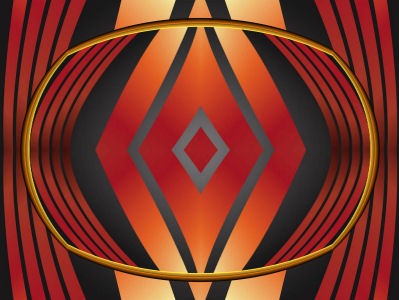

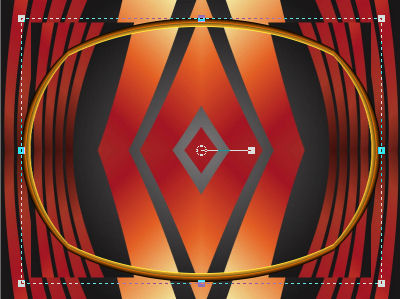

STEP 4 ADJUST >>> SHARPNESS >>> SHARPEN MORE EFFECTS>>> GEOMETRIC EFFECTS >>> CIRCLE Edge Mode = Transparent VIEW >>> RULERS Select your RASTER DEFORM tool Mode = SCALE use default settings PSPX - PSP2019:Select your PICK tool Move the centre left node left level with the 40 pixel mark on your top ruler Move the centre right node righft level with the 760 pixel mark on your top ruler
STEP 5 Click the RESET RECTANGLE arrow Select the MOVER tool to disengage the DEFORMATION tool (PICK tool) With your MAGIC WAND ... Same settings Select the centre of your image SELECTIONS >>> MODIFY >>> EXPAND = 5 SELECTIONS >>> INVERT ACTIVATE Copy of Raster 1 EDIT >>> CLEAR DESELECT SAVE YOUR WORK

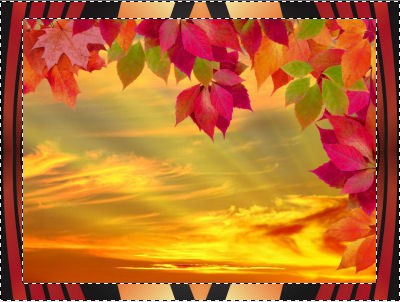

STEP 6 ACTIVATE Raster 2 Open up the selahblue-cynti image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. With your MAGIC WAND... Same settings Select the OUTER area indicated

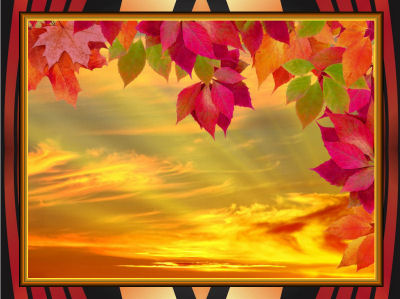

STEP 7 SELECTIONS >>> INVERT LAYERS >>> NEW RASTER LAYER EFFECTS >>> 3D EFFECTS >>> CHISEL Same settings EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings DESELECT EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings ADJUST >>> SHARPNESS >>> SHARPEN MORE

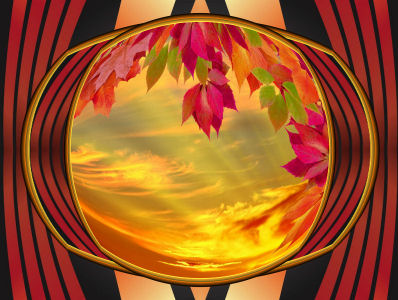

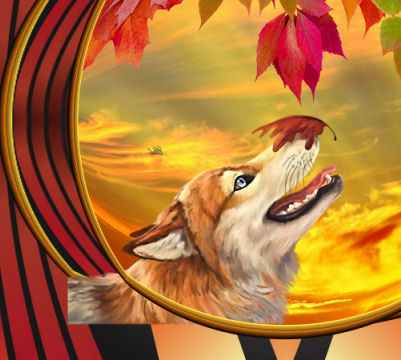

STEP 8 EFFECTS>>> GEOMETRIC EFFECTS >>> CIRCLE Edge Mode = Transparent ACTIVATE Raster 3 EDIT >>> Repeat Circle ADJUST >>> SHARPNESS >>> SHARPEN SAVE YOUR WORK

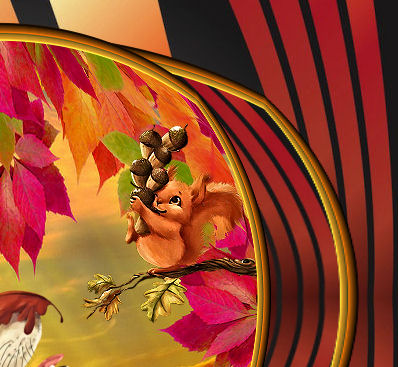

STEP 9 Open up the CAL-2048-100117 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 45% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2019: Use script available for download at top of page. (Higher versions follow your version's method) Reposition with your MOVER tool

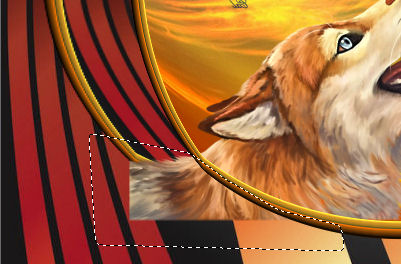

STEP 10 Choose your FREEHAND SELECTION TOOL Selection Type = Point to Point Mode = Replace Feather = 0 Smoothing = 5 Antialias = UNChecked Select the area indicated,

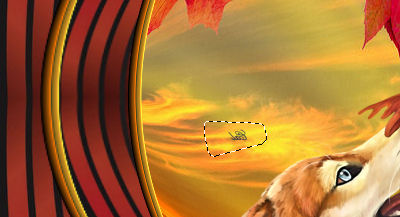

STEP 11 EDIT >>> CLEAR DESELECT Choose your FREEHAND SELECTION TOOL Same settings Select the tuber text
STEP 12 EDIT >>> CLEAR DESELECT SAVE YOUR WORK ,
STEP 13 Open up the CAL-2047-100117 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2019: Use script available for download at top of page. (Higher versions follow your version's method) IMAGE >>> RESIZE = 30% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN Reposition with your MOVER tool

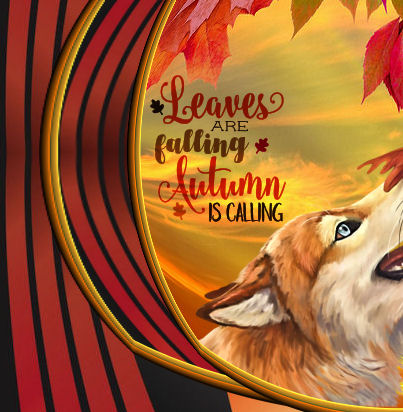

STEP 14 Open up the AutumnWordArt image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 50% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE In your LAYER PALETTE change the BLEND MODE to MULTIPLY LAYERS >>> DUPLICATE LAYERS >>> MERGE >>> MERGE DOWN Reposition with your MOVER tool SAVE YOUR WORK

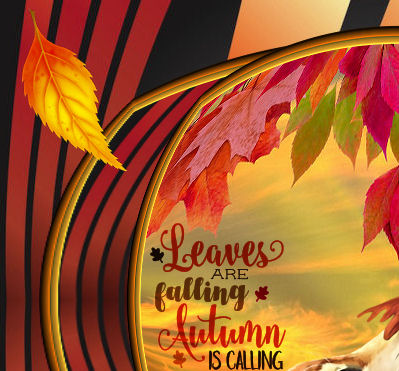

STEP 15 ACTIVATE Raster 4 Open up the jd-fall_leaf5 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options IMAGE >>> RESIZE = 70% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 325 Vertical Offset = 210 Edge Mode = Transparent

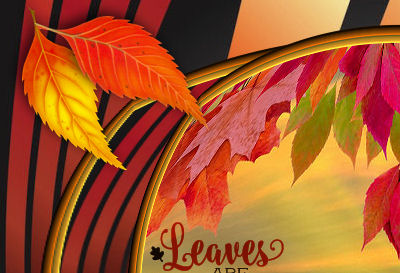

STEP 16 Open up the jd-fall_leaf9 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options IMAGE >>> RESIZE = 70% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 278 Vertical Offset = 226 Edge Mode = Transparent,
STEP 17 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = - ( minus ) 5 Colour = Black Opacity = 70 Blur = 17.00 ACTIVATE Raster 8 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 9 LAYERS >>> MERGE >>> MERGE DOWN

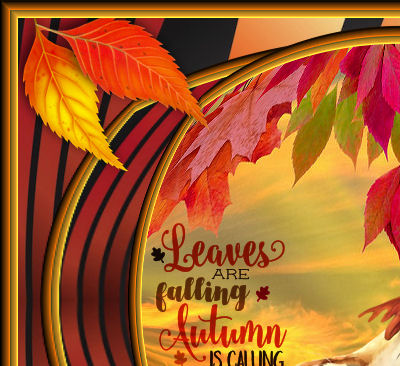

STEP 18 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR SAVE YOUR WORK
STEP 19 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 10 EFFECTS >>> 3D EFFECTS >>> CHISEL Same settings EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings DESELECT EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings ADJUST >>> SHARPNESS >>> SHARPEN MORE SAVE YOUR WORK
STEP 20 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = - ( minus ) 5 Colour = Black Opacity = 70 Blur = 17.00 ACTIVATE Raster 4 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 6 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 5 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 2 EDIT >>> Repeat Drop Shadow ,
STEP 21 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 5 Colour = Black Opacity = 70 Blur = 17.00 ACTIVATE Raster 4 EDIT >>> Repeat Drop Shadow ACTIVATE Raster 9 EDIT >>> Repeat Drop Shadow LAYERS >>> MERGE >>> MERGE VISIBLE SAVE YOUR WORK

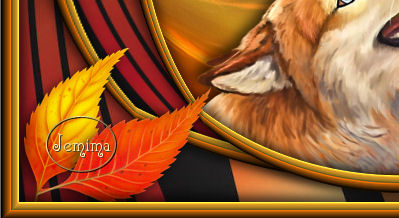

STEP 22 LAYERS >>> NEW RASTER LAYER SELECT your TEXT tool With a font of your choice add your name ,

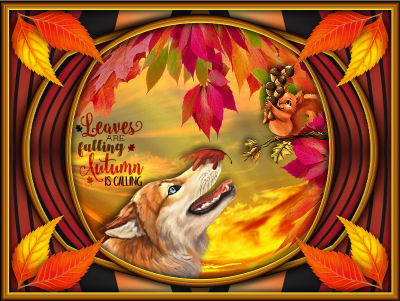

STEP 23 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,
