PEONY FRAME
PSP9 to PSP2018

This tutorial was written by Jemima ~ APRIL 2018
Copyright © 2018 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Haiku-KatNKDA_LR-01-20-10.pspimage
Save to a folder on your computer

********************************

Plugins
Mirror Rave
** PLUGINS_LINKS **
HERE

********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open up the Blue-Brown-Abstract image in your PSP workspace WINDOW >>> DUPLICATE Close the original Image LAYERS >>> Promote background layer PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2018: Use script available for download at top of page. (Higher versions follow your version's method) EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip .
STEP 2 EFFECTS >>> DISTORTION EFFECTS >>> PUNCH Strength = 50% LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 85% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE
STEP 3 ACTIVATE Raster 1 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 20 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - PSP2018: Check CONTIGUOUS PSPX - PSP2018: There is no " Sample Merged" PSPX - PSP2018: Use all layers = UNChecked Select outer border

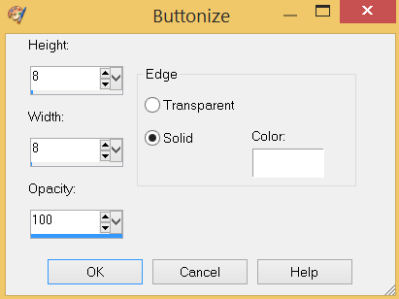

STEP 4 EFFECTS >>> EDGE EFFECTS >>> ENHANCE MORE EFFECTS >>> 3D EFFECTS >>> BUTTONIZE

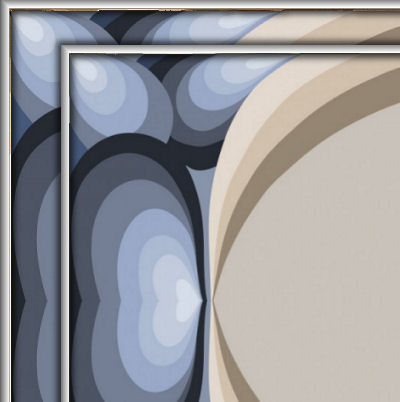

STEP 5 EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings. EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 4 Colour = Black Opacity = 70 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 4 Click OK DESELECT SAVE YOUR WORK
STEP 6 ACTIVATE Copy of Raster 1 With your MAGIC WAND ... Same settings Select inner border
STEP 7 EFFECTS >>> EDGE EFFECTS >>> ENHANCE MORE EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings. EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 4 Colour = Black Opacity = 70 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 4 Click OK DESELECT SAVE YOUR WORK
STEP 8 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 20 Feather = 2 Antialias = Checked Sample Merged = UNCHECKED PSP9 - PSP2018: Check CONTIGUOUS PSPX - PSP2018: There is no " Sample Merged" PSPX - PSP2018: Use all layers = UNChecked PSP9 - PSP2018: ANTIALIAS = Outside Select the centre area indicated

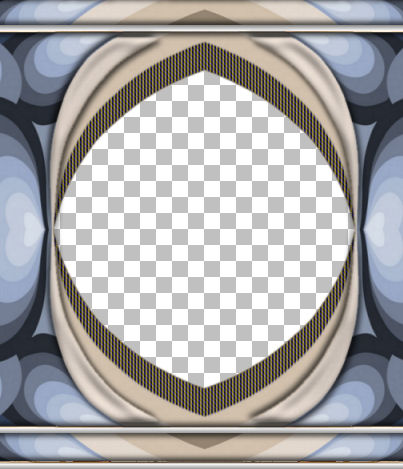

STEP 9 EDIT >>> CLEAR ACTIVATE Raster 1 EDIT >>> CLEAR DESELECT ,
STEP 10 ACTIVATE Copy of Raster 1 With your MAGIC WAND ... Same settings BUT CHANGE Mode to ADD (SHIFT) Select the centre areas indicated
STEP 11 EFFECTS >>> ARTISTIC EFFECTS >>> HALF TONE DESELECT SAVE YOUR WORK
STEP 12 With your MAGIC WAND ... Same settings Select the areas indicated
STEP 13 EFFECTS >>> 3D EFFECTS >>> INNER BEVEL COLOR = #eeecec DO NOT DESELECT ,
STEP 14 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 4 Colour = Black Opacity = 70 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 4 Click OK DESELECT SAVE YOUR WORK
STEP 15 Open up the Haiku-KatNKDA_LR-01-20-10 image in your PSP workspace Right click on the Title Bar and select COPY from the options (Minimize for now) Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 50% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN ,
STEP 16 EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 255 Vertical Offset = - ( minus ) 190 Edge Mode = Transparent,
STEP 17 LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2018: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 18 Maximize the Haiku-KatNKDA_LR-01-20-10 image Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSPX7: Use script available for download at top of page. (Higher versions follow your version's method) IMAGE >>> RESIZE = 35% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSP2018: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED ,
STEP 19 LAYERS >>> ARRANGE >>> MOVE DOWN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 255 Vertical Offset = - ( minus ) 60 Edge Mode = Transparent ,
STEP 20 LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSP2018: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK
STEP 21 ACTIVATE Copy of Raster 1 ADJUST >>> HUE & SATURATION >>> COLORIZE Hue = 164 Saturation = 63 ACTIVATE Raster 1 EDIT >>> Repeat Colorize
STEP 22 ACTIVATE Raster 2 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = - ( minus ) 4 Colour = Black Opacity = 70 Blur = 10.00 ACTIVATE Raster 3 Repeat Drop Shadow LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage
STEP 23 LAYERS >>> NEW RASTER LAYER Flood fill with LILAC #c6c4dc LAYERS >>> ARRANGE >>> MOVE DOWN Open up the adb@grendmomwithtea image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your tag image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 90% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN
STEP 24 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = - ( minus ) 4 Colour = Black Opacity = 70 Blur = 10.00 ,
STEP 25 ACTIVATE the Merged Layer EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 4 Colour = Black Opacity = 70 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 4 Click OK LAYERS >>> MERGE >>> MERGE VISIBLE ,

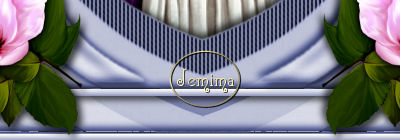

STEP 26 LAYERS >>> NEW RASTER LAYER SELECT your TEXT tool With a font of your choice add your name ,
STEP 27 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,

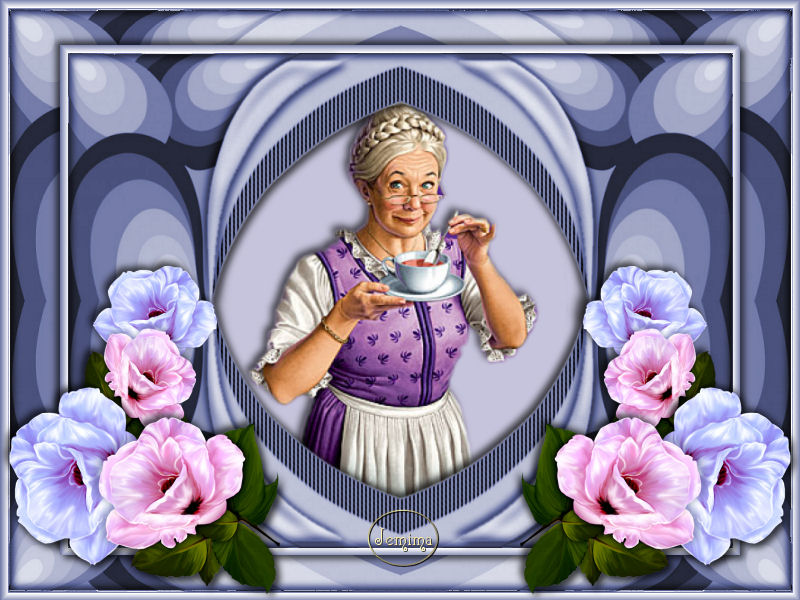

TESTERS RESULTS
