MAGENTA AND PINK FRAME
PSP9 to PSP2018

This tutorial was written by Jemima ~JULY 2018
Copyright © 2018 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

The call.jpg
pearl borders.png
straight pearl dividers.png
Save to a folder on your computer

********************************

Plugins

Mirror Rave
MuRa's Seamless
** PLUGINS_LINKS **
HERE

********************************

SCRIPTS FOR FLIP & MIRROR IN PSPX4 TO PSPX7

DOWNLOAD



You can drag this hand down the page with you to keep your place in the tut.



STEP 1

Open up the 20-red-stripe image in your PSP workspace
WINDOW >>> DUPLICATE
MINIMIZE the original Image
LAYERS >>> Promote background layer

EFFECTS>>> GEOMETRIC EFFECTS >>> CIRCLE
Edge Mode = Transparent


PSP9 - PSPX3: IMAGE >>> FLIP
PSPX4 - PSP2018: Use script available for download at top of page.
(Higher versions follow your version's method)

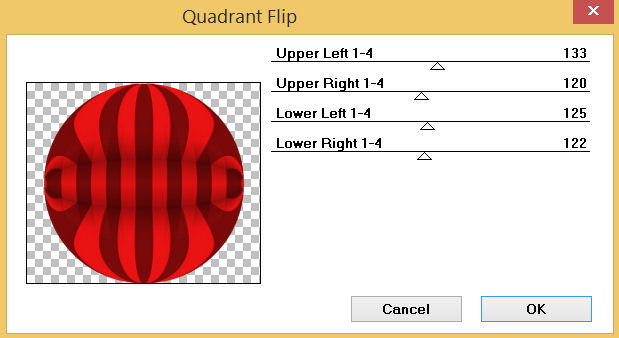

EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip


.
STEP 2

IMAGE >>> RESIZE =
83%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

SELECTIONS >>> SELECT ALL
SELECTIONS >>> FLOAT
SELECTIONS >>> DEFLOAT

SELECTIONS >>> MODIFY >>> CONTRACT =
25
EDIT >>> CLEAR

DESELECT

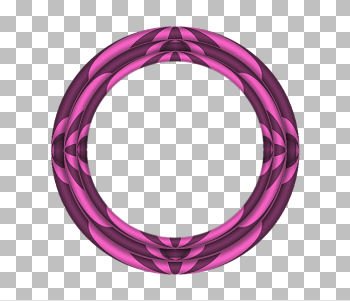

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL


,
STEP 3

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE =
89%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90
Ensure "All layers" is UNCHECKED

PSPX - PSP2018:
IMAGE >>> FREE ROTATE = RIGHT 90
Ensure "All layers" is UNCHECKED



STEP 4

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE = 88%
Same settings

ADJUST >>> SHARPNESS >>> SHARPEN

PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90
Ensure "All layers" is UNCHECKED

PSPX - PSP2018:
IMAGE >>> FREE ROTATE = RIGHT 90
Ensure "All layers" is UNCHECKED


LAYERS >>> MERGE >>> MERGE VISIBLE

ADJUST >>> HUE & SATURATION >>> COLORIZE
Hue = 227
Saturation =
106

ADJUST >>> BRIGHTNESS and CONTRAST >>> BRIGHTNESS/CONTRAST
Brightness = 35
Contrast = 27
PSPX6-PSP2018: Linear Mode checked
STEP 5

With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 - PSP2018: Check CONTIGUOUS
PSPX
- PSP2018: There is no " Sample Merged"
PSP9 - PSP2018: Use all layers = UNChecked


Select the OUTER transparent area

SELECTIONS >>> INVERT
SELECTIONS >>> MODIFY >>> CONTRACT = 10
,
STEP 6

LAYERS >>> NEW RASTER LAYER

Flood fill with PURPLE #7c3b66

DESELECT

LAYERS >>> ARRANGE >>> MOVE DOWN

STEP 7

With your MAGIC WAND ... Same settngs

ACTIVATE the Merged layer

Select the CENTRE area of your image
SELECTIONS >>> MODIFY >>> EXPAND = 10

ACTIVATE Raster 1

EDIT >>> CLEAR
DESELECT

LAYERS >>> MERGE >>> MERGE VISIBLE

ADJUST >>> BRIGHTNESS and CONTRAST >>> BRIGHTNESS/CONTRAST
Brightness =
10
Contrast =
8
PSPX6-PSP2018: Linear Mode checked

ADJUST >>> SHARPNESS >>> SHARPEN MORE

STEP 8

Right click on the Title Bar and select COPY from the options

Open a new image 800 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX-
PSP2018: Colour Depth RGB = 8bits/channel


Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

SAVE YOUR WORK
STEP 9

ACTIVATE Raster 1

Flood fill with
PURPLE #7c3b66

EFFECTS >>> PLUGINS >>> MuRa's
Seamless >>> Checks



EFFECTS >>> EDGE EFFECTS >>> ENHANCE

,
STEP 10

Maximize the 20-red-stripe image in your PSP workspace


Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


PSP9 - PSPX3: IMAGE >>> FLIP
PSPX4 - PSP2018: Use script available for download at top of page.
(Higher versions follow your version's method)


EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip
Same settings

ADJUST >>> HUE & SATURATION >>> COLORIZE
Hue = 227
Saturation =
106


ADJUST >>> BRIGHTNESS and CONTRAST >>> BRIGHTNESS/CONTRAST
Brightness = 35
Contrast = 25
PSPX6-PSP2018: Linear Mode checked
STEP 11

IMAGE >>> RESIZE =
90%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN MORE
EDIT >>> Repeat Sharpen More

SAVE YOUR WORK
STEP 12

ACTIVATE Raster 2

With your MAGIC WAND ... Same settngs

Select the CENTRE area of your image
SELECTIONS >>> MODIFY >>> EXPAND = 10

ACTIVATE Raster 3
EDIT >>> CLEAR

ACTIVATE Raster 1
EDIT >>> CLEAR
DESELECT
STEP 13

CLOSE Raster 1
ACTIVATE Raster 3

With your MAGIC WAND ... Same settngs

Select the OUTER transparent area
SELECTIONS >>> INVERT

LAYERS >>> NEW RASTER LAYER
Flood fill with PINK #f371c7

SELECTIONS >>> MODIFY >>> CONTRACT = 7
EDIT >>> CLEAR
DESELECT

,
STEP 14

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL



EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity =
70
Blur = 0.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK


ADJUST >>> SHARPNESS >>> SHARPEN MORE



SAVE YOUR WORK
STEP 15

OPEN & ACTIVATE Raster 1

SELECTIONS >>> SELECT ALL
SELECTIONS >>> MODIFY >>> CONTRACT =
10
SELECTIONS >>> INVERT

Right click on the Title Bar and select COPY from the options
DESELECT

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
Same setting

EFFECTS >>> EDGE EFFECTS >>> ENHANCE

ADJUST >>> SHARPNESS >>> SHARPEN MORE

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE =
95%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
STEP 16

ACTIVATE Raster 4

Open up the pearl borders
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE = 9
8%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
1
Colour = Black
Opacity =
60
Blur =
10.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
1
Click OK

SAVE YOUR WORK
STEP 17

ACTIVATE Raster 2

Open up the straight pearl dividers
image in your PSP workspace

Choose your SELECTION TOOL
Selection Type = Rectangle
Mode = Replace
Feather = 0
Antialias = UNChecked

Select the
left side divider

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


STEP 18

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = 383
Vertical Offset = 0
Edge Mode =
Transparent

LAYERS >>> DUPLICATE

PSP9 - PSPX3: IMAGE >>> MIRROR
PSPX4 - PSP2018: Use script available for download at top of page.
(Higher versions follow your version's method)


LAYERS >>> DUPLICATE
CLOSE Copy (2) of Raster 7
STEP 19

ACTIVATE Copy of Raster 7

LAYERS >>> MERGE >>> MERGE DOWN

Choose your SELECTION TOOL then click on the
CUSTOM SELECTION symbol and enter these coordinates.
STEP 20

SELECTIONS >>> INVERT
EDIT >>> CLEAR
DESELECT


OPEN & ACTIVATE Copy (2) of Raster 7

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = 3
5
Vertical Offset = 0
Edge Mode =
Transparent

LAYERS >>> DUPLICATE

PSP9 - PSPX3: IMAGE >>> MIRROR
PSPX4 - PSP2018: Use script available for download at top of page.
(Higher versions follow your version's method)


LAYERS >>> MERGE >>> MERGE DOWN
STEP 21

Choose your SELECTION TOOL then click on the
CUSTOM SELECTION symbol and enter these coordinates.
,
STEP 22

SELECTIONS >>> INVERT
EDIT >>> CLEAR
DESELECT


LAYERS >>> MERGE >>> MERGE DOWN

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
1
Colour = Black
Opacity = 60
Blur = 10.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK


SAVE YOUR WORK

STEP 23

ACTIVATE Raster 2

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
5
Colour = Black
Opacity = 60
Blur = 12.00


ACTIVATE Raster 4
EDIT >>> Repeat Drop Shadow

ACTIVATE Copy of Raster 5
EDIT >>> Repeat Drop Shadow

ACTIVATE Raster 5
EDIT >>> Repeat Drop Shadow
,
STEP 24

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus )
5
Colour = Black
Opacity = 60
Blur = 12.00


ACTIVATE Copy of Raster 5
EDIT >>> Repeat Drop Shadow

ACTIVATE Raster 4
EDIT >>> Repeat Drop Shadow

ACTIVATE Raster 2
EDIT >>> Repeat Drop Shadow

LAYERS >>> MERGE >>> MERGE VISIBLE

Save as .pspimage image
STEP 25

Open up the The call
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE =
65%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

LAYERS >>> ARRANGE >>> MOVE DOWN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
0
Vertical Offset = - ( minus )
25
Edge Mode =
Transparent
STEP 26

LAYERS >>> MERGE >>> MERGE VISIBLE

LAYERS >>> NEW RASTER LAYER

SELECT your TEXT tool
With a font of your choice add your name
STEP 27

LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image

,





TESTERS RESULTS
