IN THE PINK FRAME
PSP9 to PSP2018

This tutorial was written by Jemima ~ JANUARY 2018
Copyright © 2018 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

pink wave.png
ribbon cnr.png
Save to a folder on your computer

********************************

Plugins

Mirror Rave

** PLUGINS_LINKS **
HERE

********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open a new image 800 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX - PSP2018: Colour Depth RGB = 8bits/channel Flood fill with PALE PINK #f5e2e8 .

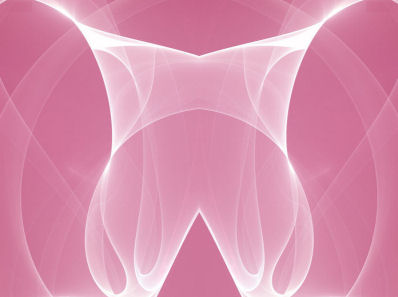

STEP 2 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL Open up the pink wave image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. DESELECT EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 0 Edge Mode = Reflect

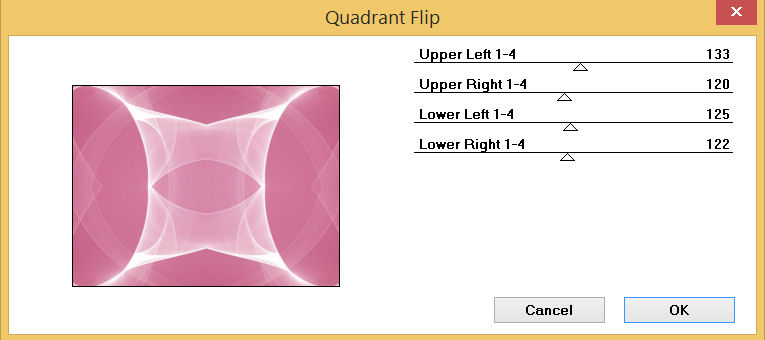

STEP 3 LAYERS >>> DUPLICATE EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip ,

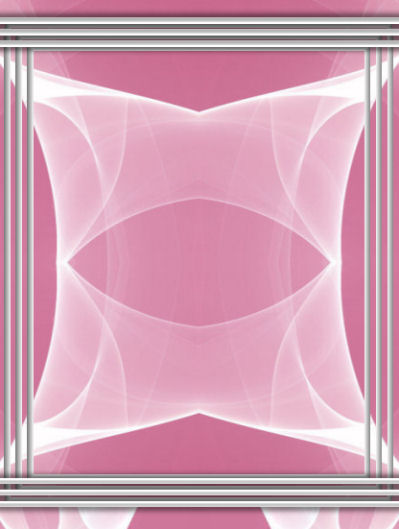

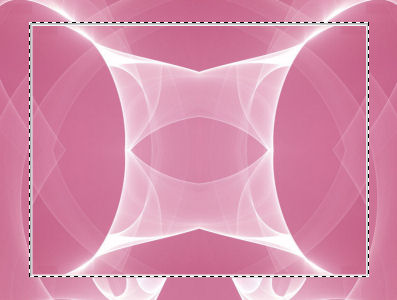

STEP 4 IMAGE >>> RESIZE = 85% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN SELECTIONS >>> SELECT ALL SELECTIONS >>> FLOAT SELECTIONS >>> DEFLOAT ,
STEP 5 LAYERS >>> NEW RASTER LAYER EFFECTS >>> 3D EFFECTS >>> BUTTONIZE
STEP 6 EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings

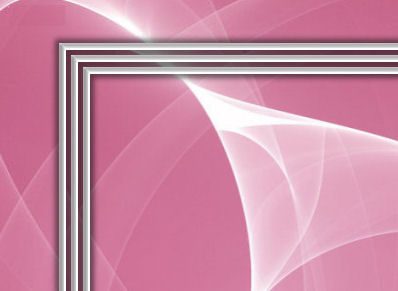

STEP 7 SELECTIONS >>> MODIFY >>> CONTRACT = 12 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings And again... SELECTIONS >>> MODIFY >>> CONTRACT = 12 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings DESELECT

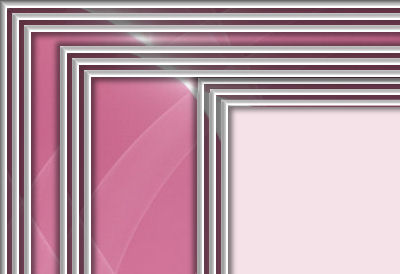

STEP 8 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 4 Colour = Black Opacity = 50 Blur = 8.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 4 Click OK ADJUST >>> SHARPNESS >>> SHARPEN MORE SAVE YOUR WORK

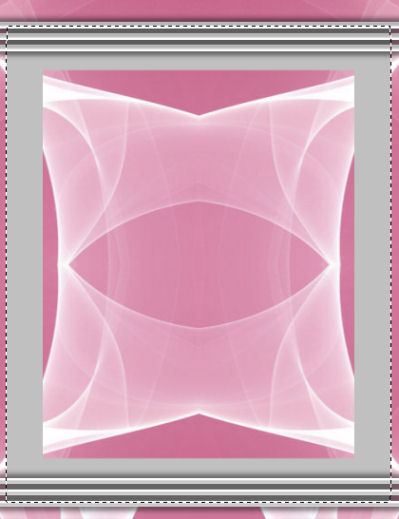

STEP 9 ACTIVATE Copy of Raster 2 Open up the FrameTemplate image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - X9: Check CONTIGUOUS PSPX - PSP2018: There is no " Sample Merged" Select the area outside the template SELECTIONS >>> INVERT

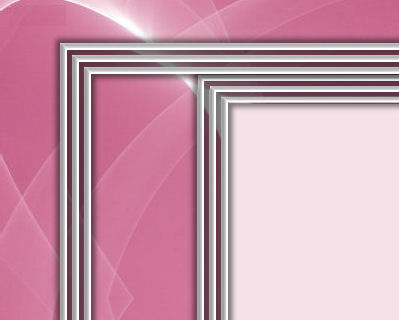

STEP 10 LAYERS >>> NEW RASTER LAYER EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings ~~~~~~~~~~~~~~~~ SELECTIONS >>> MODIFY >>> CONTRACT = 12 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings ~~~~~~~~~~~~~~~~ SELECTIONS >>> MODIFY >>> CONTRACT = 12 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings DESELECT DELETE Raster 4 SAVE YOUR WORK
STEP 11 ACTIVATE Raster 5 VIEW >>> RULERS Select your RASTER DEFORM tool Mode = SCALE use default settings PSPX - PSP2018:Select your PICK tool Move the centre top node down level with the 76 pixel mark on your left ruler. Move the centre bottom node up level with the 524 pixel mark on your left ruler.

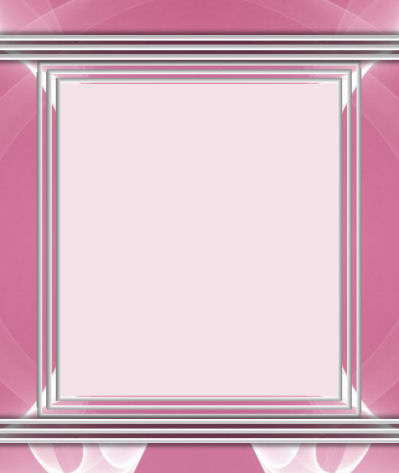

STEP 12 Click the RESET RECTANGLE arrow Select another tool to disengage the DEFORMATION / PICK TOOL With your MAGIC WAND.... Same settings. Select the CENTRE of your image ACTIVATE Copy of Raster 2 EDIT >>> CLEAR ACTIVATE Raster 2 EDIT >>> CLEAR DESELECT
STEP 13 ACTIVATE Raster 5 Repeat BOTH Drop Shadows ADJUST >>> SHARPNESS >>> SHARPEN MORE SAVE YOUR WORK
STEP 14 ACTIVATE the TOP layer Open up the ribbon cnr image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 55% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 52 Vertical Offset = - ( minus ) 115 Edge Mode = Transparent
STEP 15 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 4 Colour = Black Opacity = 50 Blur = 8.00 ,
STEP 16 ACTIVATE Raster 2 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings ~~~~~~~~~~~~~~~~ SELECTIONS >>> MODIFY >>> CONTRACT = 12 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings ~~~~~~~~~~~~~~~~ SELECTIONS >>> MODIFY >>> CONTRACT = 12 EFFECTS >>> 3D EFFECTS >>> BUTTONIZE Same settings EFFECTS >>> PLUGINS >>> Mirror Rave >>> Quadrant Flip Same settings DESELECT
STEP 17 Repeat BOTH Drop Shadows ADJUST >>> SHARPNESS >>> SHARPEN MORE SAVE YOUR WORK

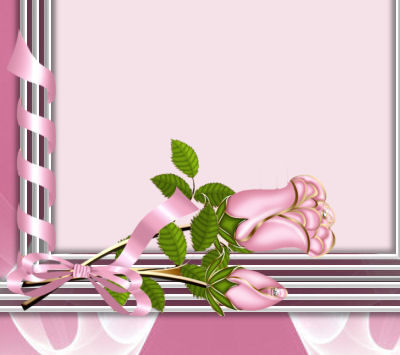

STEP 18 ACTIVATE Copy of Raster 2 Open up the Rose-Pearl image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options IMAGE >>> RESIZE = 75% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 260 Vertical Offset = 15 Edge Mode = Transparent
STEP 19 LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSPX7: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 3 Colour = Black Opacity = 65 Blur = 5.00
STEP 20 Open up the PF-Element image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 353 Vertical Offset = 0 Edge Mode = Transparent LAYERS >>> DUPLICATE PSP9 - PSPX3: IMAGE >>> MIRROR PSPX4 - PSPX7: Use script available for download at top of page. (Higher versions follow your version's method) LAYERS >>> MERGE >>> MERGE DOWN ,
STEP 21 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 3 Colour = Black Opacity = 65 Blur = 5.00,

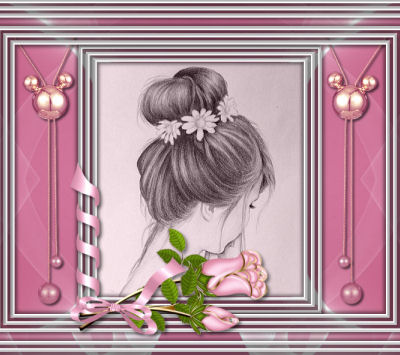

STEP 22 CLOSE Raster 1 LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image ,
STEP 23 OPEN & ACTIVATE Raster 1 Open up the crown-flowers image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 70% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN In your LAYER PALETTE change the BLEND MODE to LUMINANCE (L)
STEP 24 LAYERS >>> MERGE >>> MERGE VISIBLE LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name
STEP 25 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,
