FISHING
PSP9 to PSPX9

This tutorial was written by Jemima ~ MAY 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

oval shape.png
fishing91.pspimage
RSBaitShopShea.psp
screws_eyelets.pspimage
Maligne Boathouse_Misted by Kathy_Kms.pspimage
Save to a folder on your computer

********************************

Plugins

NONE

********************************

SCRIPTS FOR FLIP & MIRROR IN PSPX4 TO PSPX9

DOWNLOAD


You can drag this hand down the page with you to keep your place in the tut.



STEP 1

Open a new image 700 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX-X9: Colour Depth RGB = 8bits/channel


.

STEP 2

Open up the tropical-fish-446 image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

~~~~~~~~~~~~~~~~~~~~

Open up the oval shape image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.
.

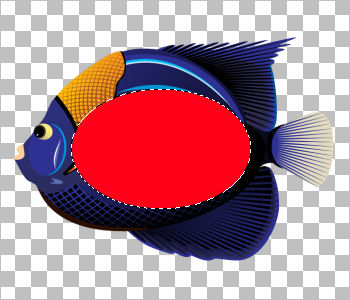

STEP 3

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
25
Vertical Offset =
0
Edge Mode =
Transparent

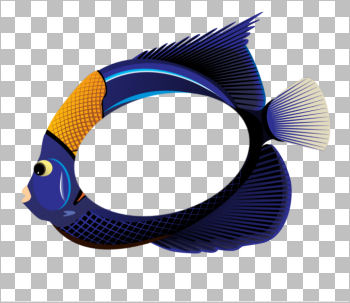

SELECTIONS >>> SELECT ALL
SELECTIONS >>> FLOAT
SELECTIONS >>> DEFLOAT
STEP 4

ACTIVATE Raster 2

EDIT >>> CLEAR
DESELECT


DELETE Raster 3

PSP9: IMAGE >>> ROTATE >>> FREE ROTATE =
LEFT 15
Ensure "All layers" is UNCHECKED

PSPX - PSPX9:
IMAGE >>> FREE ROTATE =
LEFT 15
Ensure "All layers" is UNCHECKED

.

STEP 5

IMAGE >>> RESIZE =
90%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN
,

STEP 6

Open up the Maligne Boathouse_Misted by Kathy_Kms image
in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options


IMAGE >>> MIRROR

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
45
Vertical Offset =
0
Edge Mode =
Transparent


LAYERS >>> ARRANGE >>> MOVE DOWN

STEP 7

ACTIVATE Raster 2

With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 - X9: Check CONTIGUOUS
PSPX - X9: There is no " Sample Merged"
PSPX - X9: Use all layers = UNChecked


Select the area indicated.

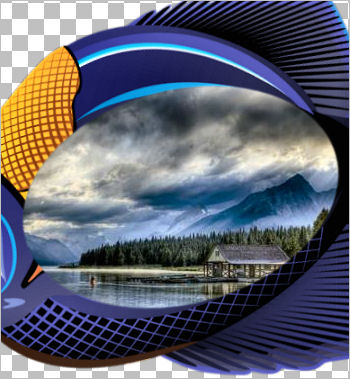

STEP 8

SELECTIONS >>> MODIFY >>> EXPAND = 15

ACTIVATE Raster 3

SELECTIONS >>> INVERT

EDIT >>> CLEAR
DESELECT


SAVE YOUR WORK,

STEP 9

ACTIVATE Raster 2

Open up the
patience2
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE =
75%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
45
Vertical Offset =
10

Edge Mode =
Transparent

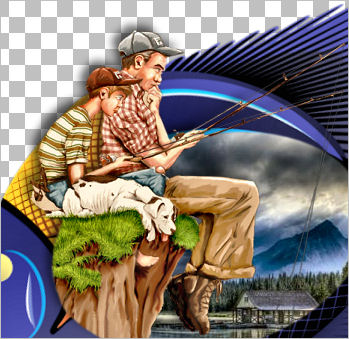

STEP 10

LAYERS >>> DUPLICATE

LAYERS >>> ARRANGE >>> MOVE DOWN

Edit >>> Repeat Move Layer Down

ACTIVATE Raster 4

In your LAYER PALETTE change the OPACITY to
60%
,

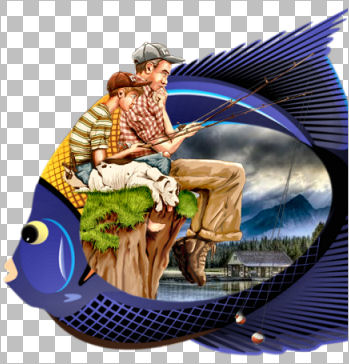

STEP 11

Choose your FREEHAND SELECTION TOOL
Selection Type = Point to Point
Mode = Replace
Feather =
2
Smoothing = 5
Antialias =Checked

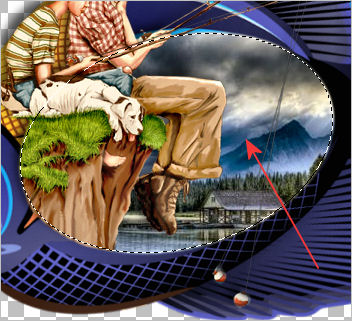

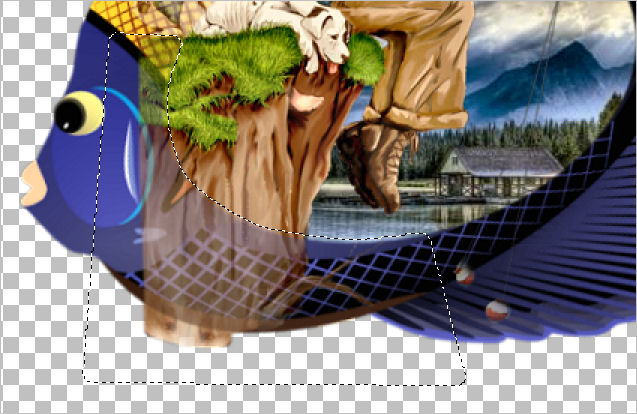

Zoom in and select the area indicated


,

STEP 12

EDIT >>> CLEAR

ACTIVATE Copy of Raster 4

EDIT >>> CLEAR
DESELECT

In your LAYER PALETTE change the OPACITY to 100%
on Raster 4

STEP 13

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus )
6
Colour = Black
Opacity =
60
Blur = 12.00

SAVE YOUR WORK,

STEP 14

ACTIVATE Raster 2

With your MAGIC WAND... same settngs
Select the centre of your image
STEP 15

SELECTIONS >>> MODIFY >>> EXPAND = 2

SELECTIONS >>> INVERT

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus )
3
Colour = Black
Opacity = 60
Blur = 10.00


Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to
3
Click OK

DESELECT

SAVE YOUR WORK,
STEP 16

LAYERS >>> MERGE >>> MERGE VISIBLE

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
5
Vertical Offset = - ( minus )
30
Edge Mode =
Transparent
,

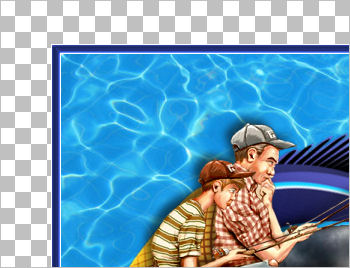

STEP 17

Open up the Free-water
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


LAYERS >>> ARRANGE >>> MOVE DOWN

IMAGE >>> RESIZE =
85%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE
,

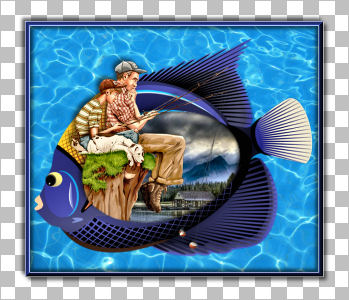

STEP 18

With your MAGIC WAND... same settngs
Select the OUTER transparent area

LAYERS >>> NEW RASTER LAYER

SELECTIONS >>> INVERT

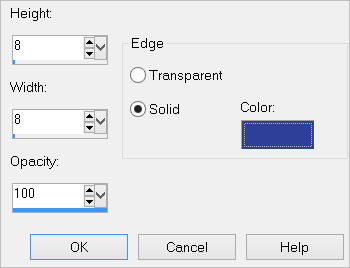

EFFECTS >>> 3D EFFECTS >>>
BUTTONIZE
COLOUR =
#2d3f99
STEP 19
SELECTIONS >>> MODIFY >>> CONTRACT = 8
EDIT >>> CLEAR

DESELECT

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour =
WHITE
Opacity = 100
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK
,
STEP 20

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus )
6
Colour = Black
Opacity = 60
Blur = 10.00


Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to
6
Click OK
,
STEP 21

Open up the HG-Template-8-bd-24-3-11
in your PSP workspace
and MINIMIZE

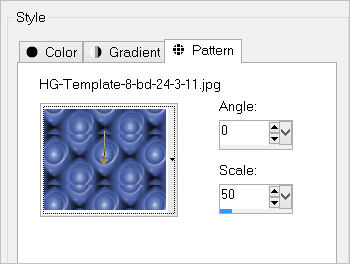

In your MATERIALS PALETTE
Select the PATTERN option in the foreground
and load HG-Template-8-bd-24-3-11 pattern
using these settings.
STEP 22

LAYERS >>> NEW RASTER LAYER

Flood fill with
the PATTERN

LAYERS >>> ARRANGE >>> SEND TO BOTTOM

ACTIVATE Raster 1

In your LAYER PALETTE change the
BLEND MODE to LUMINANCE

EFFECTS >>> EDGE EFFECTS >>> ENHANCE
STEP 23

ACTIVATE the Merged layer

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 6
Colour = Black
Opacity = 60
Blur = 10.00

ACTIVATE
Raster 3
LAYERS >>> NEW RASTER LAYER


SELECTIONS >>> SELECT ALL

EFFECTS >>> 3D EFFECTS >>> BUTTONIZE
Same settings

DESELECT

EFFECTS >>> EDGE EFFECTS >>> ENHANCE
EDIT >>> Repeat
Enhance Edges

STEP 24

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 6
Colour = Black
Opacity = 60
Blur = 10.00


Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
6
Click OK
,
LAYERS >>> MERGE >>> MERGE VISIBLE

SAVE YOUR WORK

STEP 25

Open up the caught
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> MIRROR


IMAGE >>> RESIZE =
65%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
240
Vertical Offset =
55
Edge Mode =
Transparent


EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus ) 6
Colour = Black
Opacity = 60
Blur = 10.00

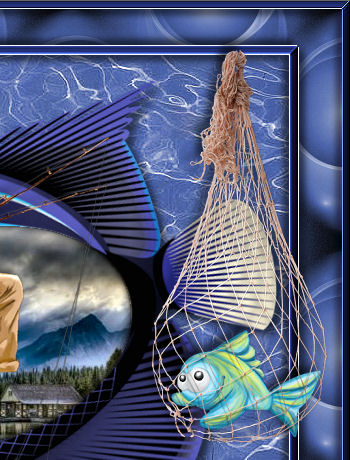

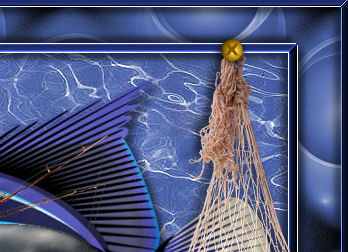

STEP 26

Open up the screws_eyelets
image in your PSP workspace
Activate
layer 6

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
235
Vertical Offset =
245
Edge Mode =
Transparent


LAYERS >>> MERGE >>> MERGE DOWN
STEP 27

Open up the fishing91
image in your PSP workspace
Activate layer 1

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


ADJUST >>> COLOUR BALANCE >>> NEGATIVE IMAGE
PSPX - X9: IMAGE >>> NEGATIVE IMAGE

IMAGE >>> RESIZE =
65%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

LAYERS >>> DUPLICATE
LAYERS >>> MERGE >>> MERGE DOWN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
50
Vertical Offset =
225

Edge Mode =
Transparent

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
2

Colour = Black
Opacity =
75
Blur = 0

,
STEP 28

Back to the fishing91 image in your PSP workspace
Activate layer 2

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


ADJUST >>> COLOUR BALANCE >>> NEGATIVE IMAGE
PSPX - X9: IMAGE >>> NEGATIVE IMAGE

IMAGE >>> RESIZE = 65%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

LAYERS >>> DUPLICATE
LAYERS >>> MERGE >>> MERGE DOWN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
150
Vertical Offset = - ( minus )
195

Edge Mode =
Transparent

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Same settings
STEP 29

Open up the RSBaitShopShea
image in your PSP workspace

Choose your FREEHAND SELECTION TOOL
Selection Type = Point to Point
Mode = Replace
Feather = 0
Smoothing = 5
Antialias = UNChecked

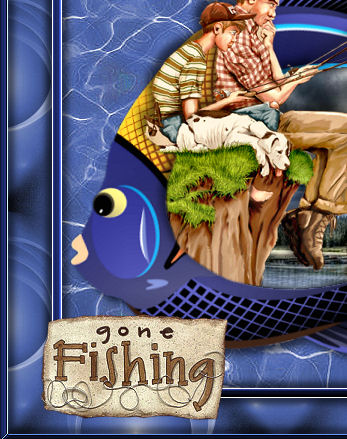

Select the "Gone Fishing" sign


Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE =
60%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
215
Vertical Offset = - ( minus )
225
Edge Mode =
Transparent
STEP 30

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus ) 6
Colour = Black
Opacity = 60
Blur = 10.00


LAYERS >>> MERGE >>> MERGE VISIBLE

LAYERS >>> NEW RASTER LAYER

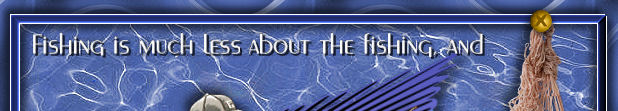

SELECT your TEXT tool
With a font of your choice add your name

LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image


TESTERS RESULTS
