TEAL FRAME
PSP9 to PSPX9

This tutorial was written by Jemima ~ FEBRUARY 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Save to a folder on your computer

********************************

Plugins

** PLUGINS_LINKS **
HERE

EYE CANDY 3 OR.. EYE CANDY 4000
SIMPLE FILTERS
EYE CANDY 5 - IMPACT
GRAPHICS PLUS

********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open a new image 700 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX-X9: Colour Depth RGB = 8bits/channel Open up the scroll_108 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 55% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE .
STEP 2 EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 98 Vertical Offset = 109 Edge Mode = Transparent ADJUST >>> COLOUR BALANCE >>> NEGATIVE IMAGE PSPX - X9: IMAGE >>> NEGATIVE IMAGE EFFECTS >>> PLUGINS >>> ALIEN SKIN EYE CANDY 5: IMPACT >>> EXTRUDE
STEP 3 LAYERS >>> DUPLICATE CLOSE Copy of Raster 2 ACTIVATE Raster 2 LAYERS >>> DUPLICATE IMAGE >>> FLIP LAYERS >>> MERGE >>> MERGE DOWN LAYERS >>> DUPLICATE IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN ADJUST >>> HUE & SATURATION >>> COLORIZE Hue = 114 Saturation = 48
STEP 4 OPEN & ACTIVATE Copy of Raster 2 IMAGE >>> RESIZE = 55% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 145 Vertical Offset = 130 Edge Mode = Transparent ADJUST >>> HUE & SATURATION >>> COLORIZE Hue = 114 Saturation = 48
STEP 5 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 1 Colour = Black Opacity = 100 Blur = 0 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 1 Click OK ACTIVATE Raster 2 Repeat both drop shadows SAVE YOUR WORK
STEP 6 ACTIVATE Raster 1 Flood fill with TEAL #90b3a7 Open up the wave_2.png image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. ADJUST >>> COLOUR BALANCE >>> NEGATIVE IMAGE PSPX - X9: IMAGE >>> NEGATIVE IMAGE EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 180 Edge Mode = Reflect
STEP 7 EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = 140 Edge Mode = Transparent IMAGE >>> RESIZE = 95% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE LAYERS >>> DUPLICATE LAYERS >>> MERGE >>> MERGE DOWN LAYERS >>> DUPLICATE IMAGE >>> FLIP LAYERS >>> MERGE >>> MERGE DOWN
STEP 8 ACTIVATE Raster 2 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 1 Antialias = Checked Sample Merged = UNCHECKED PSP9 - X9: Check CONTIGUOUS PSPX - X9: There is no " Sample Merged" PSP9 - X9: ANTIALIAS = Outside Select the centre of your image SELECTIONS >>> MODIFY >>> EXPAND = 2
STEP 9 ACTIVATE Raster 3 EDIT >>> CLEAR ACTIVATE Raster 1 EDIT >>> CLEAR DESELECT ACTIVATE Raster 3 In your LAYER PALETTE change the BLEND MODE to SCREEN With your MAGIC WAND ... Same settings Select the area indicated
STEP 10 ACTIVATE Raster 1 EFFECTS >>> PLUGINS >>> GRAPHICS PLUS >>> Cross Shadow ,
STEP 11 EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 180 Edge Mode = Reflect ACTIVATE Raster 3 SELECTIONS >>> INVERT LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> MOVE DOWN ,
STEP 12 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Center Offset Direction = 315 Center Offset Distance = 10.00 Overall Opacity = 55 Overall Blur (Pixels) = 10.00 Perspectivel Blur (Pixels) = 0.00 Color = BLACK Check 'Draw Only Outside Selection'
STEP 13 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings BUT .. change DIRECTION to 135 DESELECT ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Same settings BUT .. change DIRECTION to 135 DESELECT SAVE YOUR WORK

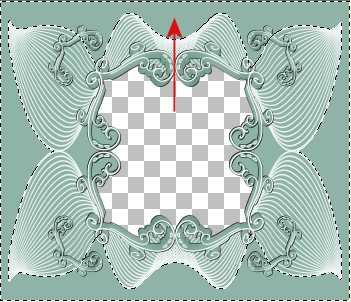

STEP 14 ACTIVATE Raster 3 With your MAGIC WAND ... Same settings Select the area indicated
STEP 15 SELECTIONS >>> INVERT LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> MOVE DOWN ~~~~~~~~~~~~~~~~~~~ EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 315 DESELECT ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Same settings EDIT >>> Repeat Shadowlab.. change DIRECTION to 135 DESELECT
STEP 16 ACTIVATE Raster 2 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135 DESELECT ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Same settings EDIT >>> Repeat Shadowlab.. change DIRECTION to 135 DESELECT
STEP 17 ACTIVATE Copy of Raster 2 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Same settings LAYERS >>> MERGE >>> MERGE VISIBLE SAVE YOUR WORK
STEP 18 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL Flood fill with DARK GREY #26302c SELECTIONS >>> MODIFY >>> CONTRACT = 4 EDIT >>> CLEAR Flood fill with WHITE SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR Flood fill with TEAL #90b3a7 SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR Flood fill with WHITE SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR Flood fill with DARK GREY #26302c SELECTIONS >>> MODIFY >>> CONTRACT = 4 EDIT >>> CLEAR DESELECT
STEP 19 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 315 ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Same settings EDIT >>> Repeat Shadowlab.. change DIRECTION to 315
STEP 20 LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image ,
STEP 21 Open up the fantasy-cbae image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 65% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN LAYERS >>> ARRANGE >>> MOVE DOWN LAYERS >>> MERGE >>> MERGE VISIBLE
STEP 22 LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name ,
STEP 23 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,

TESTERS RESULTS
