ORNATE FRAME
PSP9 to PSPX9

This tutorial was written by Jemima ~ JANUARY 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Kacper Kalinowski (34).jpg
Save to a folder on your computer

********************************

Plugins

** EYE CANDY3 **
OR
** EYE CANDY 4000 **
http://pspgroep.seniorennet.be/filterpagina.htm

********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open a new image 700 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX-X9: Colour Depth RGB = 8bits/channel. VIEW >>> RULERS .

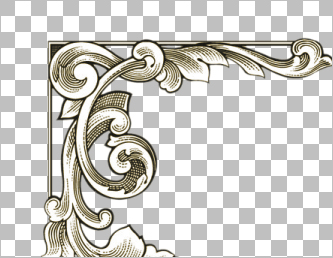

STEP 2 Open up the vector-corner-49 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 95 Vertical Offset = - ( minus ) 115 Edge Mode = Transparent
STEP 3 LAYERS >>> DUPLICATE IMAGE >>> MIRROR
STEP 4 ACTIVATE Raster 2 LAYERS >>> DUPLICATE IMAGE >>> FLIP PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSPX9: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 240 Vertical Offset = - ( minus ) 45 Edge Mode = Transparent
STEP 5 LAYERS >>> DUPLICATE IMAGE >>> MIRROR CLOSE Raster 1 LAYERS >>> MERGE >>> MERGE VISIBLE
STEP 6 ADJUST >>> HUE & SATURATION >>> COLORIZE Hue = 33 Saturation = 53
STEP 7 OPEN & ACTIVATE Raster 1 Flood fill with CREAM #cec9b6 ACTIVATE the Merged layer With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - X9: Check CONTIGUOUS PSPX - X9: There is no " Sample Merged" Select the CENTRE of your image
STEP 8 SELECTIONS >>> MODIFY >>> EXPAND = 6 ACTIVATE Raster 1 EDIT >>> CLEAR DESELECT ADJUST >>> ADD/REMOVE NOISE >>> ADD NOISE
STEP 9 ADJUST >>> SHARPNESS >>> SHARPEN MORE
STEP 10 ACTIVATE the Merged layer LAYERS >>> NEW RASTER LAYER Flood fill with DARK CREAM #847d64 SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 8 EDIT >>> CLEAR DESELECT LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 95% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 95% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE
STEP 11 LAYERS >>> MERGE >>> MERGE DOWN EDIT >>> Repeat Layer Merge Down EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 1 Colour = Black Opacity = 100 Blur = 0 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 1 Click OK
STEP 12 EFFECTS >>> TEXTURE EFFECTS >>> POLISHED STONE
STEP 13 EFFECTS >>> EDGE EFFECTS >>> ENHANCE
STEP 14 With your MAGIC WAND Same settings Select the CENTRE of your image SELECTIONS >>> MODIFY >>> EXPAND = 6 SELECTIONS >>> INVERT
STEP 15 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Center Offset Direction = 315 Center Offset Distance = 10.00 Overall Opacity = 55 Overall Blur (Pixels) = 10.00 Perspectivel Blur (Pixels) = 0.00 Color = BLACK Check 'Draw Only Outside Selection'
STEP 16 EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135 DESELECT ~~~~~~~~~~~~~~~~~~~ OR EDIT >>> Repeat Shadowlab.. change DIRECTION to 135 DESELECT
STEP 17 ACTIVATE the Merged layer EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 315 ~~~~~~~~~~~~~~~~~~~ OR EFFECTS >>> PLUGINS >>> EYE CANDY 4000 >>> SHADOWLAB Same settings EDIT >>> Repeat Shadowlab.. change DIRECTION to 315
STEP 18 LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image ,
STEP 19 Open up the Kacper Kalinowski (34) image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE
STEP 20 Select your RASTER DEFORM tool Mode = SCALE use default settings PSPX - X9:Select your PICK tool Pull the centre left node right to the 100 pixel mark on your top ruler. Pull the centre right node left to the 600 pixel mark on your top ruler.
STEP 21 Click the RESET RECTANGLE arrow Select another tool to disengage the DEFORMATION / PICK TOOL LAYERS >>> ARRANGE >>> MOVE DOWN ADJUST >>> SHARPNESS >>> SHARPEN LAYERS >>> MERGE >>> MERGE VISIBLE
STEP 22 LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name.
STEP 23 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,

TESTERS RESULTS
