JENNY MARIE FRAME
PSP9 to PSPX9

This tutorial was written by Jemima ~ JANUARY 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

pink flowers2.png
Save to a folder on your computer

********************************

Plugins

** SIMPLE FILTERS **
download

** AAA FILTERS **
DOWNLOAD HERE

** AAA FOTO FRAME **
DOWNLOAD HERE
********************************

You can drag this hand down the page with you to keep your place in the tut.

STEP 1 In your MATERIALS PALETTE Load LIGHT PINK' #f2e8e8 ' in your foreground Load DARK PINK ' #bba2a2 ' in your background Select the 'gradient' option on your foreground, locate the 'Foreground-background' gradient and use these settings. STYLE = LINEAR .

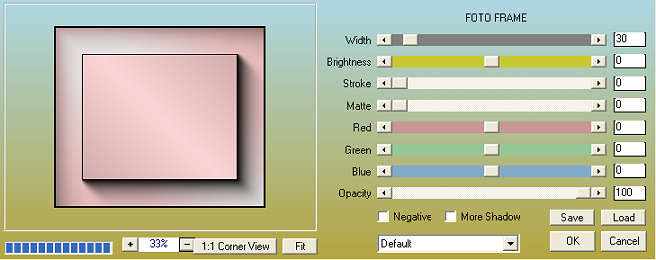

STEP 2 Open a new image 700 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX-X9: Colour Depth RGB = 8bits/channel Flood fill with the GRADIENT EFFECTS >>> PLUGINS >>> AAA FRAMES >>> Foto Frame ,

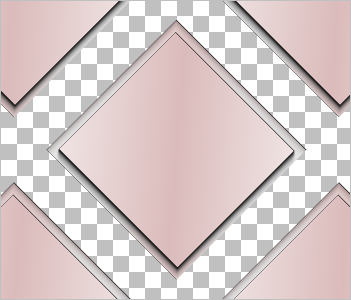

STEP 3 IMAGE >>> RESIZE = 80% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE EFFECTS >>> PLUGINS >>> SIMPLE >>> Diamonds

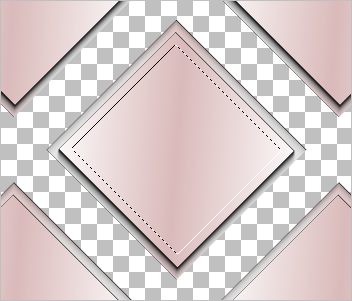

STEP 4 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 30 Feather = 2 Antialias = Checked Sample Merged = UNCHECKED PSP9 - X9: Check CONTIGUOUS PSPX - X9: There is no " Sample Merged" PSP9 - X9: ANTIALIAS = Outside Select the area shown SELECTIONS >>> MODIFY >>> CONTRACT = 20
STEP 5 EDIT >>> CLEAR EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 1 Colour = Black Opacity = 80 Blur = 0 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 1 Click OK DESELECT
STEP 6 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNChecked Sample Merged = UNCHECKED PSP9 - X9: Check CONTIGUOUS PSPX - X9: There is no " Sample Merged" Select the centre transparent area SELECTIONS >>> MODIFY >>> EXPAND = 3 SELECTIONS >>> INVERT EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 8 Colour = Black Opacity = 60 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 8 Click OK DESELECT
STEP 7 With your MAGIC WAND ... same settings Select the outer transparent area SELECTIONS >>> INVERT
STEP 8 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 8 Colour = Black Opacity = 60 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 8 Click OK DESELECT
STEP 9 Choose your FREEHAND SELECTION TOOL Selection Type = Point to Point Mode = Replace Feather = 0 Smoothing = 5 Antialias = UNChecked Select the area shown
STEP 10 SELECTIONS >>> INVERT Right click on the Title Bar and select CUT from the options DESELECT Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 90% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE
STEP 11 LAYERS >>> NEW RASTER LAYER Choose your SELECTION TOOL then click on the CUSTOM SELECTION symbol and enter these coordinates.
STEP 12 Flood fill with DARK PINK SELECTIONS >>> MODIFY >>> CONTRACT = 8 EDIT >>> CLEAR Flood fill with DARK GREY #404040 SELECTIONS >>> MODIFY >>> CONTRACT = 2 EDIT >>> CLEAR Flood fill with DARK PINK SELECTIONS >>> MODIFY >>> CONTRACT = 8 EDIT >>> CLEAR Flood fill with DARK GREY #404040 SELECTIONS >>> MODIFY >>> CONTRACT = 2 EDIT >>> CLEAR
STEP 13 SELECTIONS >>> INVERT EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 8 Colour = Black Opacity = 60 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 8 Click OK DESELECT

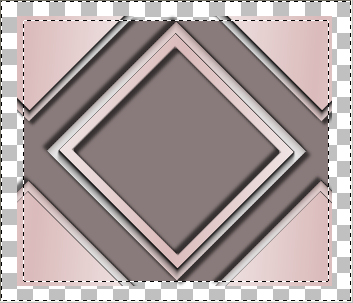

STEP 14 LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> SEND TO BOTTOM Choose your SELECTION TOOL then click on the CUSTOM SELECTION symbol and enter these coordinates.
STEP 15 Flood fill with #bba2a2 EFFECTS >>> PLUGINS >>> Cybia >>> Screenworks >>> Dot Screen Default settings DESELECT

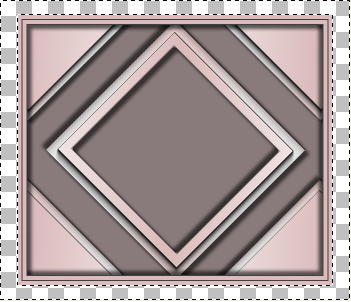

STEP 16 CLOSE Raster 3 ACTIVATE Raster 2 EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 3 Vertical Offset = 0 Edge Mode = Transparent ACTIVATE Raster 4 With your MAGIC WAND ... same settings Select the outer transparent area
STEP 17 ACTIVATE Raster 2 EDIT >>> CLEAR DESELECT OPEN & ACTIVATE Raster 3 With your MAGIC WAND ... same settings Select the outer transparent area

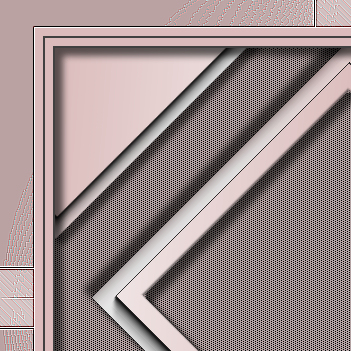

STEP 18 LAYERS >>> NEW RASTER LAYER Flood fill with the GRADIENT EFFECTS >>> PLUGINS >>> SIMPLE >>> Quick Tile EFFECTS >>> EDGE EFFECTS >>> ENHANCE MORE EDIT >>> Repeat Enhance Edges More DESELECT
STEP 19 LAYERS >>> NEW RASTER LAYER Flood fill with DARK PINK SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 4 EDIT >>> CLEAR Flood fill with DARK GREY #404040 SELECTIONS >>> MODIFY >>> CONTRACT = 2 EDIT >>> CLEAR DESELECT ACTIVATE Raster 5 ADJUST >>> SHARPNESS >>> SHARPEN MORE
STEP 20 ACTIVATE Raster 4 Choose your FREEHAND SELECTION TOOL Selection Type = Point to Point Mode = Replace Feather = 0 Smoothing = 5 Antialias = UNChecked Select the area shown.

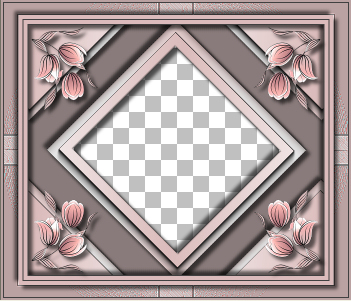

STEP 21 EDIT >>> CLEAR DESELECT ACTIVATE Raster 6 Open up the pink flowers2 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> MIRROR IMAGE >>> FLIP IMAGE >>> RESIZE = 50% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN Reposition with your MOVER tool
STEP 22 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 8 Colour = Black Opacity = 60 Blur = 10.00
STEP 23 ACTIVATE Raster 3 With your MAGIC WAND ... same settings Select the area shown
STEP 24 SELECTIONS >>> INVERT ACTIVATE Raster 5 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 8 Colour = Black Opacity = 60 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 8 Click OK DESELECT
STEP 25 ACTIVATE Raster 6 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 8 Colour = Black Opacity = 60 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 8 Click OK
STEP 26 Open up the 010-portraits-jenny-marie image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. LAYERS >>> ARRANGE >>> SEND TO BOTTOM IMAGE >>> RESIZE = 75% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN
STEP 27 LAYERS >>> MERGE >>> MERGE VISIBLE LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name.
STEP 28 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image
