JAZZY FRAME
PSP9 to PSPX9

This tutorial was written by Jemima ~ MAY 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Save to a folder on your computer

********************************

Plugins

** NONE **

********************************

SCRIPTS FOR FLIP & MIRROR IN PSPX4 TO PSPX9

DOWNLOAD


You can drag this hand down the page with you to keep your place in the tut.



STEP 1

Open a new image 700 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX-X9: Colour Depth RGB = 8bits/channel


Open up the trend_background
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE = 80%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
70
Vertical Offset =
125

Edge Mode =
Transparent
STEP 2

VIEW >>> RULERS

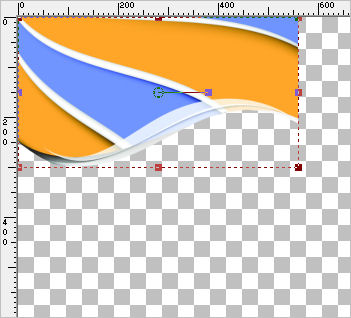

Select your RASTER DEFORM tool
Mode = SCALE
use default settings

PSPX - X9:Select your PICK tool


Push the lower centre node up level with the 303 pixel mark
on your left ruler.
STEP 3

Click the RESET RECTANGLE arrow

Select another tool to disengage the
DEFORMATION / PICK TOOL

LAYERS >>> DUPLICATE
IMAGE >>> FLIP

LAYERS >>> MERGE >>> MERGE DOWN

Select your RASTER DEFORM tool ... same settings

Push the centre right node
to the left
level with the 351 pixel mark on your top ruler.
STEP 4

Click the RESET RECTANGLE arrow

Select another tool to disengage the
DEFORMATION / PICK TOOL

LAYERS >>> DUPLICATE
IMAGE >>>
MIRROR

LAYERS >>> MERGE >>> MERGE DOWN

EFFECTS >>> DISTORTION EFFECTS >>> P
UNCH
Strength = 70%

SAVE YOUR WORK
STEP 5

With your MAGIC WAND
Mode =
Add (Shift)
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 - X9: Check CONTIGUOUS
PSPX
- X9: There is no " Sample Merged"


Select the transparent areas indicated
,
STEP 6

SELECTIONS >>> MODIFY >>> EXPAND = 10

LAYERS >>> NEW RASTER LAYER

Flood fill with
BLUE #7095ff

DESELECT

LAYERS >>> ARRANGE >>> MOVE DOWN

ACTIVATE Raster 2

LAYERS >>> MERGE >>> MERGE DOWN
STEP 7

LAYERS >>> DUPLICATE

PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90
Ensure "All layers" is UNCHECKED

PSPX - PSPX9:
IMAGE >>> FREE ROTATE = RIGHT 90
Ensure "All layers" is UNCHECKED


EFFECTS >>> DISTORTION EFFECTS >>> PUNCH
Strength = 70%

LAYERS >>> ARRANGE >>> MOVE DOWN

ACTIVATE Raster 3

EFFECTS >>> DISTORTION EFFECTS >>> PUNCH
Strength = 70%
STEP 8

ACTIVATE Copy of Raster 3

EFFECTS >>> DISTORTION EFFECTS >>> PUNCH
Strength = 70%

ACTIVATE Raster 1
SELECTIONS >>> SELECT ALL

ACTIVATE Copy of Raster 3
SELECTIONS >>> INVERT
EDIT >>> CLEAR
DESELECT

SAVE YOUR WORK

(This gets rid of the excess on Copy of Raster 3),
STEP 9

ACTIVATE Raster 3
LAYERS >>> NEW RASTER LAYER

SELECTIONS >>> SELECT ALL
Flood fill with BLUE #7095ff
SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR

Flood fill with
ORANGE #ffa628
SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR

Flood fill with BLUE #7095ff
SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR


Flood fill with ORANGE #ffa628
SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR

DO NOT DESELECT
STEP 10

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 70
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK


SELECTIONS >>>
INVERT

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
4
Colour = Bl
ue
#0a48e1
Opacity = 70
Blur = 10.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
4
Click OK


DESELECT
STEP 11

ACTIVATE Raster 3

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus ) 4
Colour = B
lack
Opacity = 70
Blur = 10.00


ACTIVATE Copy of Raster 3
EDIT >>> Repeat Drop Shadow

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
4
Colour = Bl
ack
Opacity = 70
Blur = 10.00


ACTIVATE Raster 3
EDIT >>> Repeat Drop Shadow

SAVE YOUR WORK,
STEP 12

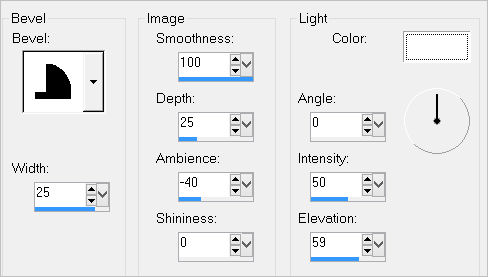

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL




,
STEP 13

ACTIVATE Copy of Raster 3
EDIT >>> Repeat
Inner Bevel

ACTIVATE Raster 2
LAYERS >>> DUPLICATE

CLOSE Copy of Raster 2
CLOSE Raster 1

ACTIVATE Raster 2
LAYERS >>> MERGE >>> MERGE VISIBLE

IMAGE >>> RESIZE =
85%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN
STEP 14

With your MAGIC WAND
Mode =
Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 - X9: Check CONTIGUOUS
PSPX
- X9: There is no " Sample Merged"


Select the outer transparent area

SELECTIONS >>> INVERT
,,
STEP 15

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
4
Colour = Blue
#0a48e1
Opacity = 70
Blur = 10.00

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
4
Click OK


DESELECT
STEP 16

OPEN & ACTIVATE Raster 1

SELECTIONS >>> SELECT ALL


Flood fill with
ORANGE #ffa628
SELECTIONS >>> MODIFY >>> CONTRACT = 30
EDIT >>> CLEAR


Flood fill with BLUE #7095ff
SELECTIONS >>> MODIFY >>> CONTRACT = 30
EDIT >>> CLEAR

DESELECT
STEP 17

EFFECTS >>> ARTISTIC EFFECTS >>>
HALF TONE



SAVE YOUR WORK
STEP 18

ACTIVATE the Merged layer

Open up the
AP_GLASSBALLS
image in your PSP workspace

Choose your SELECTION TOOL
Selection Type = Rectangle
Mode = Replace
Feather = 0
Antialias = UNChecked

Select the "glassballs" indicated

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.
,
STEP 19

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus ) 110
Vertical Offset =
205
Edge Mode =
Transparent

LAYERS >>> DUPLICATE
IMAGE >>> MIRROR
LAYERS >>> MERGE >>> MERGE DOWN

LAYERS >>> DUPLICATE
IMAGE >>>
FLIP
LAYERS >>> MERGE >>> MERGE DOWN
STEP 20

Back to the AP_GLASSBALLS image

Choose your SELECTION TOOL .. same settings
Select the top left large Blue Ball

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
220
Vertical Offset =
0
Edge Mode =
Transparent

LAYERS >>> DUPLICATE
IMAGE >>> MIRROR
LAYERS >>> MERGE >>> MERGE DOWN

EDIT >>> Repeat Layer Merge Down
STEP 21

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = - ( minus ) 4
Colour = Blue
#0a48e1
Opacity = 70
Blur = 10.00

OPEN Copy of Raster 2 layer

LAYERS >>> MERGE >>> MERGE VISIBLE

Save as .pspimage image
STEP 22

LAYERS >>> NEW RASTER LAYER

Flood fill with
WHITE

LAYERS >>> ARRANGE >>> MOVE DOWN

Open up the 89_OceanView image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


,
STEP 23

Open up the banner-boat
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE =
35%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN


EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus ) 120
Vertical Offset =
80
Edge Mode =
Transparent

LAYERS >>> MERGE >>> MERGE VISIBLE,
STEP 24

Open up the buddies
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE =
70%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN


EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
60
Vertical Offset =
- ( minus )
50
Edge Mode =
Transparent
,
STEP 25

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical offset =
4
Horizontal offset =
0

Colour = Black
Opacity =
45
Blur = 10.00


LAYERS >>> MERGE >>> MERGE VISIBLE

STEP 26

LAYERS >>> NEW RASTER LAYER

Select your TEXT tool
and with a font of your choice add your name
STEP 27

LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image

,





TESTERS RESULTS
