FROUFROU FRAME
PSP9 to PSP2018

This tutorial was written by Jemima ~ OCTOBER 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Save to a folder on your computer

********************************

Plugins

SIMPLE

** PLUGINS_LINKS **
HERE

********************************

SCRIPTS FOR FLIP & MIRROR IN PSPX4 TO PSP2018

DOWNLOAD


You can drag this hand down the page with you to keep your place in the tut.



STEP 1

Open a new image 700 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX -
PSP2018: Colour Depth RGB = 8bits/channel

Flood fill with
TEAL
#aec0bf

CLOSE
Raster 1
.

STEP 2

Open up the Classical-border-03
image in your PSP workspace

Choose your FREEHAND SELECTION TOOL
Selection Type = Point to Point
Mode = Replace
Feather = 0
Smoothing = 5
Antialias = UNChecked


Select the lower border

Right click on the Title Bar and select COPY from the options

,

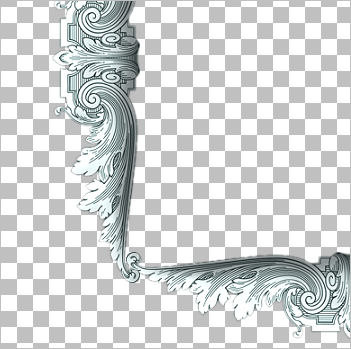

STEP 3

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE =
90%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = 0
Vertical Offset = 245
Edge Mode =
Transparent

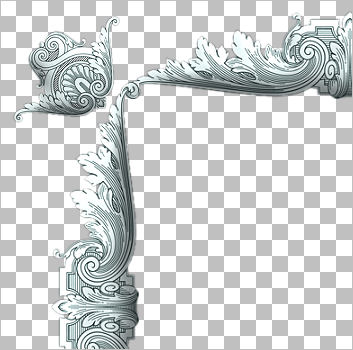

STEP 4

LAYERS >>> DUPLICATE

PSP9: IMAGE >>> ROTATE >>> FREE ROTATE =
LEFT 90
Ensure "All layers" is UNCHECKED

PSPX - PSP2018:
IMAGE >>> FREE ROTATE =
LEFT 90
Ensure "All layers" is UNCHECKED


EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
255
Vertical Offset = - ( minus )
252
Edge Mode =
Transparent

LAYERS >>> MERGE >>> MERGE DOWN
STEP 5

LAYERS >>> DUPLICATE

IMAGE >>> MIRROR

IMAGE >>> FLIP

LAYERS >>> MERGE >>> MERGE DOWN

SAVE YOUR WORK
STEP 6

Back to the Classical-border-03 image in your PSP workspace

Choose your FREEHAND SELECTION TOOL
Same settings

Select the
centre right image


Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.
,
STEP 7

IMAGE >>> RESIZE =
70%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
2
83
Vertical Offset =
230

Edge Mode =
Transparent
STEP 8

EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
STEP 9

CLOSE Raster 2 and Raster 3
OPEN & ACTIVATE Raster 1

Open up the ABS14
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = 50
Vertical Offset = 70
Edge Mode =
Transparent


In your LAYER PALETTE change
the BLEND MODE to LUMINANCE (L)
STEP 10

EFFECTS >>> REFLECTION EFFECTS >>>
ROTATING MIRROR

Horizontal Offset = 0
Vertical Offset = n/a
Rotation Angle =
0
Edge Mode =
Reflect
STEP 11

LAYERS >>> DUPLICATE,

EFFECTS >>> IMAGE EFFECTS >>> OFFSET

Horizontal Offset =
0
Vertical Offset = - ( minus ) 135
Edge Mode =
Transparent

LAYERS >>> MERGE >>> MERGE DOWN

EFFECTS >>> EDGE EFFECTS >>> ENHANCE
EDIT >>> Repeat Enhance Edges

SAVE YOUR WORK
STEP 12

OPEN & ACTIVATE Raster 2

With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9 - X9: Check CONTIGUOUS
PSPX
-
PSP2018: There is no " Sample Merged"

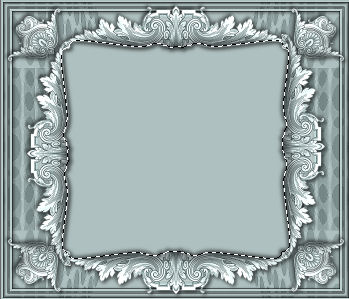

Select the CENTRE area of your image

SELECTIONS >>> MODIFY >>> EXPAND = 10
STEP 13

ACTIVATE Raster 4

EDIT >>> CLEAR
DESELECT

SAVE YOUR WORK
STEP 14

LAYERS >>> NEW RASTER LAYER
SELECTIONS >>> SELECT ALL
Flood fill with TEAL #aec0bf

SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR


Flood fill with
BLACK
SELECTIONS >>> MODIFY >>> CONTRACT =
1
EDIT >>> CLEAR


SELECTIONS >>> MODIFY >>> CONTRACT = 4
Flood fill with TEAL #aec0bf
SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR

Flood fill with BLACK
SELECTIONS >>> MODIFY >>> CONTRACT = 1
EDIT >>> CLEAR


SELECTIONS >>> MODIFY >>> CONTRACT = 4
STEP 15

Flood fill with TEAL #aec0bf
SELECTIONS >>> MODIFY >>> CONTRACT = 4
EDIT >>> CLEAR

Flood fill with BLACK
SELECTIONS >>> MODIFY >>> CONTRACT = 1
EDIT >>> CLEAR

DESELECT
STEP 16

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
2
Colour = Black
Opacity =
65
Blur = 10.00


SAVE YOUR WORK
STEP 17

ACTIVATE Raster 2

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
4
Colour = Black
Opacity =
55
Blur = 10.00


Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus )
4
Click OK
STEP 18

OPEN & ACTIVATE Raster 3

Repeat both Drop Shadows

ACTIVATE Raster 5

ADJUST >>> SHARPNESS >>> SHARPEN

STEP 19

ACTIVATE Raster 1
LAYERS >>> DUPLICATE
CLOSE Raster 1

ACTIVATE Raster 2
With your MAGIC WAND.... Same settings.,
Select the CENTRE
of your image

SELECTIONS >>> MODIFY >>> EXPAND = 15

STEP 20

ACTIVATE Copy of Raster 1

EDIT >>> CLEAR
DESELECT


LAYERS >>> MERGE >>> MERGE VISIBLE


OPEN & ACTIVATE Raster 1

Save as .pspimage image


NOTE: I left Raster 1 as a background
as an option should you decide to use different
images within the frame.


STEP 21

LAYERS >>> NEW RASTER LAYER

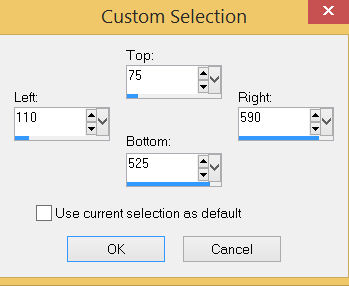

Choose your SELECTION TOOL then click on the
CUSTOM SELECTION symbol
and enter these coordinates.
STEP 22

Open up the 3b-victorian-houses
image in your PSP workspace

Right click on the Title Bar and select COPY from the options


Right click on the Title Bar of your frame image
and select PASTE INTO SELECTION from the options.


ADJUST >>> SHARPNESS >>> SHARPEN

DESELECT
STEP 23

Open up the art-deco-xmas
image in your PSP workspace

Right click on the Title Bar and select COPY from the options


Right click on the Title Bar of your frame image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> RESIZE =
50%
Check "Lock aspect ratio."
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

,
STEP 24

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus ) 120
Vertical Offset = - ( minus )
75
Edge Mode =
Transparent

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
4
Colour = Black
Opacity =
55
Blur = 10.00


LAYERS >>> MERGE >>> MERGE VISIBLE

SAVE YOUR WORK,
STEP 25

LAYERS >>> NEW RASTER LAYER

Select your TEXT tool
and with a font of your choice add your name


LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image

.




TESTERS RESULTS
