DING SCROLL FRAME
PSP9 to PSPX9

This tutorial was written by Jemima ~ JANUARY 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Trio.pspimage
Save to a folder on your computer

Save to your PSP Patterns folder

********************************



Plugins

** EYE CANDY3 **
http://pspgroep.seniorennet.be/filterpagina.htm

** GREG'S FACTORY OUTPUT Vol 2 **

http://www.fleursauvage.be/utilitaire/filtres/filtres.htm
http://www.lesdouceursdecloclo.com/mesfiltres/mes_filtres.htm

********************************

SCRIPTS FOR FLIP & MIRROR IN PSPX4 TO PSPX9

DOWNLOAD



You can drag this hand down the page with you to keep your place in the tut.



STEP 1

Open a new image 700 x 600
Transparent background
PSP9: Colour Depth = 16 Million Colors (24bit)
PSPX-X9: Colour Depth RGB = 8bits/channel


Open up the ding-scroll
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options
.

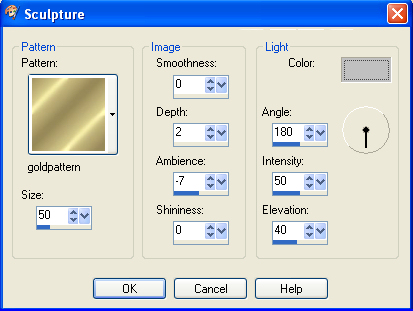

EFFECTS >>> TEXTURE EFFECTS >>> SCULPTURE
COLOUR = #c0c0c0
PATTERN = goldpattern


STEP 2


With your MAGIC WAND
Mode =
Add (Shift)
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias =
Checked
Sample Merged = CHECKED
PSP9 - X9: Check CONTIGUOUS
PSPX
- X9: There is no " Sample Merged"
PSPX - X9: Use all layers = UNChecked

PSP9 - X9: ANTIALIAS = Outside

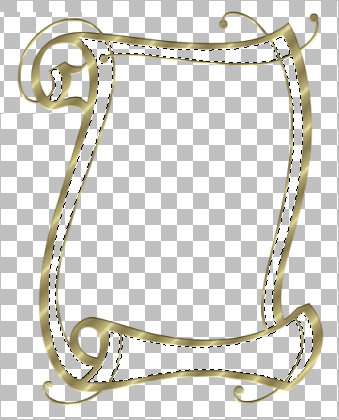

Select the areas indicated
STEP 3

LAYERS >>> NEW RASTER LAYER

LAYERS >>> ARRANGE >>> MOVE DOWN

SELECTIONS >>> MODIFY >>> EXPAND = 2

Flood fill selections with OFF WHITE #f8eee4

DESELECT
STEP 4

ACTIVATE Raster 2

With your MAGIC WAND

Same settings

Select the areas indicated.
STEP 5

ACTIVATE Raster 3

SELECTIONS >>> MODIFY >>> EXPAND =
2

Flood fill selections with BEIGE #b4a596

DESELECT

ACTIVATE Raster 2

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets =
3
Colour = Black
Opacity =
70
Blur = 8.00

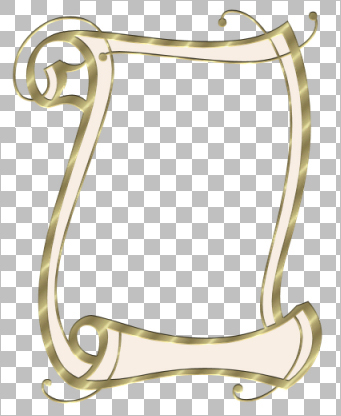

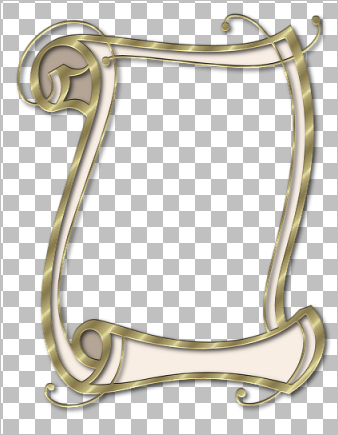

LAYERS >>> MERGE >>> MERGE DOWN

ADJUST >>> SHARPNESS >>> SHARPEN

SAVE YOUR WORK

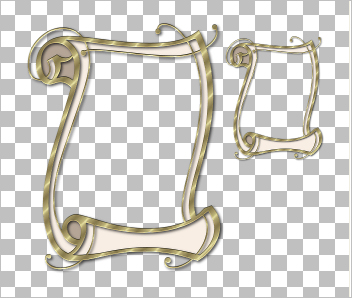

STEP 6

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus ) 100
Vertical Offset =
5
Edge Mode =
Transparent


LAYERS >>> DUPLICATE

IMAGE >>> RESIZE =
50%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
250
Vertical Offset =
100
Edge Mode =
Transparent

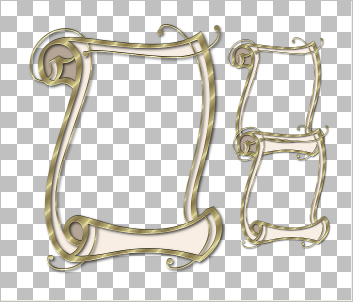

STEP 7

LAYERS >>> DUPLICATE

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
10
Vertical Offset = - ( minus ) 1
75

Edge Mode =
Transparent


CLOSE Raster 1

LAYERS >>> MERGE >>> MERGE VISIBLE

STEP 8

CLOSE the Merged layer
OPEN & ACTIVATE
Raster 1

Flood fill with BLUE #052a4a

LAYERS >>> NEW RASTER LAYER
SELECTIONS >>> SELECT ALL

Open up the
overlapping-stripes
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE INTO SELECTION from the options.


DESELECT

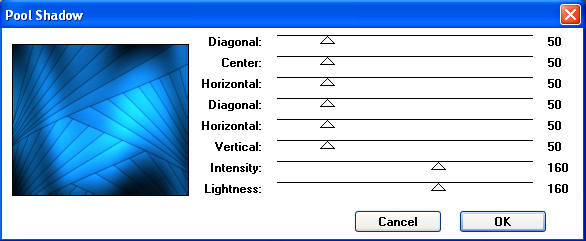

EFFECTS >>> PLUGINS >>> GREG'S FACTORY OUTPUT VOL2 >>> POOL SHADOW

,

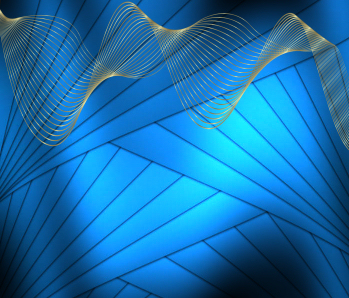

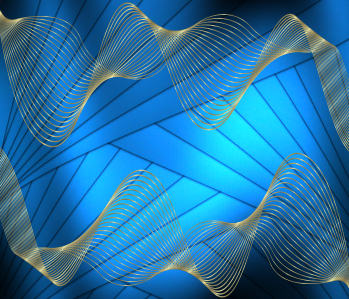

STEP 9

Open up the wave_2.png
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

EFFECTS >>> TEXTURE EFFECTS >>> SCULPTURE
Same settings

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
0
Vertical Offset = 14
5

Edge Mode =
Transparent

STEP 10

LAYERS >>> DUPLICATE
LAYERS >>> MERGE >>> MERGE DOWN

LAYERS >>> DUPLICATE
IMAGE >>> FLIP
IMAGE >>> MIRROR


LAYERS >>> MERGE >>> MERGE DOWN
Edit >>> Repeat Layer Merge Down

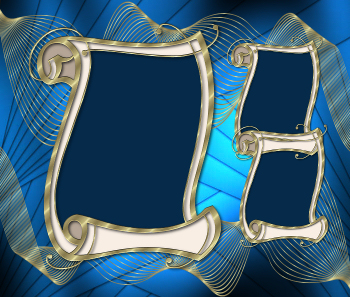

STEP 11

OPEN & ACTIVATE the Merged layer

With your MAGIC WAND.... Same settings.
Change TOLERANCE to 30

Select the areas indicated
Be s
ure to select right up to the inner edges of the frames


,
STEP 12

SELECTIONS >>> MODIFY >>> EXPAND = 4

ACTIVATE Raster 2

EDIT >>> CLEAR
DESELECT


SAVE YOUR WORK
STEP 13

ACTIVATE the Merged layer

EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>>
DROP SHADOW
.
STEP 14

EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135

LAYERS >>> MERGE >>> MERGE DOWN
STEP 15

LAYERS >>> NEW RASTER LAYER


Flood fill with BLUE

SELECTIONS >>> SELECT ALL
SELECTIONS >>> MODIFY >>> CONTRACT = 3
EDIT >>> CLEAR
DESELECT

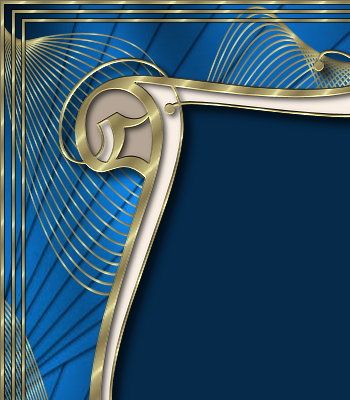

EFFECTS >>> TEXTURE EFFECTS >>> SCULPTURE
Same settings.
,
STEP 16

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE =
97%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE = 97%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

LAYERS >>> MERGE >>> MERGE DOWN
Edit >>> Repeat Layer Merge Down

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity =
70
Blur = 0


Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK

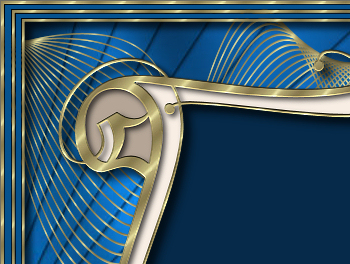

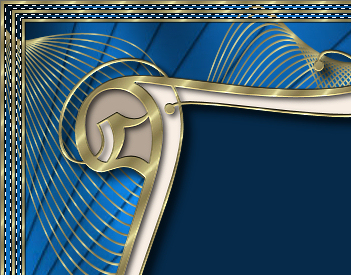

STEP 17

With your MAGIC WAND.... Same settings.

Select the areas indicated

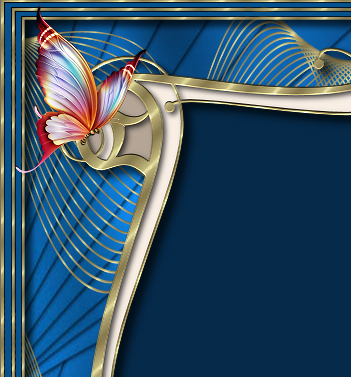

STEP 18

Flood fill with MID BLUE #05528e

DESELECT

EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>>
DROP SHADOW

Same settings

EDIT >>> Repeat Drop Shadow.. change DIRECTION to
315
STEP 19

Open up the butterfly7b
image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.


IMAGE >>> MIRROR

IMAGE >>> RESIZE =
35%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
270
Vertical Offset =
210
Edge Mode =
Transparent

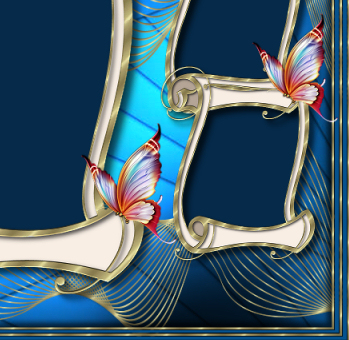

STEP 20

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE =
90%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

IMAGE >>> MIRROR

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset = - ( minus )
170
Vertical Offset =
- ( minus )
290
Edge Mode =
Transparent
STEP 21

LAYERS >>> DUPLICATE

IMAGE >>> RESIZE = 90%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> IMAGE EFFECTS >>> OFFSET
Horizontal Offset =
215
Vertical Offset =
135

Edge Mode =
Transparent

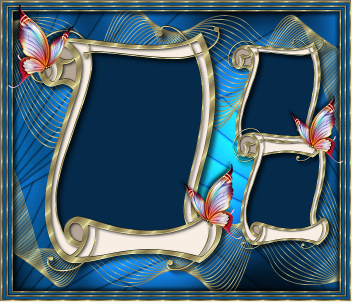

STEP 22

LAYERS >>> MERGE >>> MERGE DOWN
Edit >>> Repeat Layer Merge Down

EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>>
DROP SHADOW

Same settings

CLOSE Raster 1

LAYERS >>> MERGE >>> MERGE VISIBLE

OPEN & ACTIVATE Raster 1

Save as .pspimage
STEP 23

Open up the Trio
image in your PSP workspace
A
ctivate Raster 1
Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

Reposition with your MOVER tool
STEP 24

Back to the Trio image in your PSP workspace
Activate Raster 2
Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE =
65%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

Reposition with your MOVER tool
STEP 25

Back to the Trio image in your PSP workspace
Activate Raster
3
Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE = 65%
Ensure "Resize all layers" is UNCHECKED
Resample using WEIGHTED AVERAGE

ADJUST >>> SHARPNESS >>> SHARPEN

Reposition with your MOVER tool

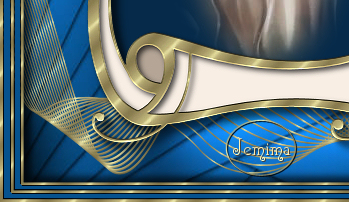

STEP 26

LAYERS >>> MERGE >>> MERGE VISIBLE

LAYERS >>> NEW RASTER LAYER

SELECT your TEXT tool
With a font of your choice add your name
STEP 27

LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image

,
