CONTEMPORARY FRAME
PSP9 to PSPX9

This tutorial was written by Jemima ~ AUGUST 2017
Copyright © 2017 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

oval template.png
screws2-sandi.pspimage
contemporary elements.pspimage

Save to a folder on your computer

Save to your PSP Patterns folder

********************************


Plugins
SIMPLE FILTERS

** PLUGINS_LINKS **
HERE

********************************

You can drag this hand down the page with you to keep your place in the tut.

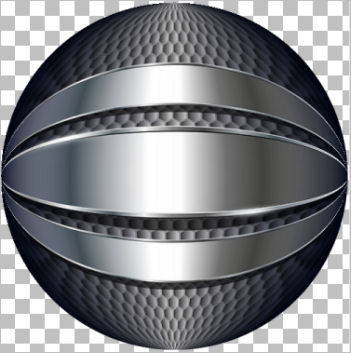

STEP 1 Open up the metal_bckgr_03 image in your PSP workspace WINDOW >>> DUPLICATE Close the original Image LAYERS >>> Promote background layer EFFECTS >>> GEOMETRIC EFFECTS >>> CIRCLE Edge Mode = Transparent (Minimize original)
STEP 2 Open a new image 700 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX-X9: Colour Depth RGB = 8bits/channel Right click on the Title Bar of the metal circle image and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSPX9: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED
STEP 3 EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 180 Edge Mode = Reflect Open up the oval template image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. SELECTIONS >>> SELECT ALL SELECTIONS >>> FLOAT SELECTIONS >>> DEFLOAT
STEP 4 ACTIVATE Raster 2 EDIT >>> CLEAR DELETE Raster 3 DO NOT DESELECT
STEP 5 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 3 Colour = Black Opacity = 75 Blur = 0 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 3 Click OK DESELECT SAVE YOUR WORK
STEP 6 ACTIVATE Raster 1 SELECTIONS >>> SELECT ALL Open up the Rik-Oostenbroek-illustrator-016 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. EFFECTS >>> REFLECTION EFFECTS >>> ROTATING MIRROR Horizontal Offset = 0 Vertical Offset = n/a Rotation Angle = 180 Edge Mode = Reflect
STEP 7 LAYERS >>> NEW RASTER LAYER Maximize the metal_bckgr_03 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE INTO SELECTION from the options. DESELECT In your LAYER PALETTE change the BLEND MODE to HARD LIGHT ,
STEP 8 ACTIVATE Raster 2 In your LAYER PALETTE change the BLEND MODE to LUMINANCE (L) SAVE YOUR WORK
STEP 9 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - X9: Check CONTIGUOUS PSPX - X9: There is no " Sample Merged" Select the CENTRE area of your image SELECTIONS >>> MODIFY >>> EXPAND = 10 ,
STEP 10 ACTIVATE Raster 3 EDIT >>> CLEAR ACTIVATE Raster 1 EDIT >>> CLEAR DESELECT ACTIVATE Raster 2 SAVE YOUR WORK
STEP 11 Open up the contemporary elements image in your PSP workspace Activate the Vertical layer Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 335 Vertical Offset = 0 Edge Mode = Transparent
STEP 12 LAYERS >>> DUPLICATE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 8 Vertical Offset = 0 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN,
STEP 13 LAYERS >>> DUPLICATE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 40 Vertical Offset = 0 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN LAYERS >>> DUPLICATE IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN SAVE YOUR WORK ,
STEP 14 Back to the contemporary elements image in your PSP workspace Activate the Horizontal layer Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. LAYERS >>> ARRANGE >>> MOVE DOWN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = 285 Edge Mode = Transparent
STEP 15 LAYERS >>> DUPLICATE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = - ( minus ) 8 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN LAYERS >>> DUPLICATE IMAGE >>> FLIP LAYERS >>> MERGE >>> MERGE DOWN ACTIVATE Raster 4 EDIT >>> Repeat Layer Merge Down In your LAYER PALETTE change the BLEND MODE to HARD LIGHT SAVE YOUR WORK
STEP 16 Open up the screws2-sandi image in your PSP workspace Activate Raster 1 Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 15% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN MORE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 312 Vertical Offset = 260 Edge Mode = Transparent LAYERS >>> DUPLICATE CLOSE Copy of Raster 5
STEP 17 ACTIVATE Raster 5 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
STEP 18 OPEN & ACTIVATE Copy of Raster 5 EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = - ( minus ) 155 Edge Mode = Transparent,
STEP 19 LAYERS >>> DUPLICATE IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN LAYERS >>> DUPLICATE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = - ( minus ) 195 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN EDIT >>> Repeat Layer Merge Down SAVE YOUR WORK
STEP 20 In your MATERIALS PALETTE load zilverpatroon pattern in the foreground using these settings Load BLACK in your background
STEP 21 LAYERS >>> NEW RASTER LAYER SELECTIONS >>> SELECT ALL Flood fill with BLACK SELECTIONS >>> MODIFY >>> CONTRACT = 1 EDIT >>> CLEAR Flood fill with zilverpatroon pattern SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR Flood fill with BLACK SELECTIONS >>> MODIFY >>> CONTRACT = 1 EDIT >>> CLEAR DESELECT
STEP 22 ACTIVATE Raster 2 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 5 Colour = Black Opacity = 75 Blur = 10.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 5 Click OK,
STEP 23 LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image ,
STEP 24 LAYERS >>> NEW RASTER LAYER Flood fill with #e9dfdf LAYERS >>> ARRANGE >>> MOVE DOWN ,
STEP 25 Open up the tubtatie_d3fh10i image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 62% Check "Lock aspect ratio." Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN
STEP 26 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical offset = 0 Horizontal offset = - ( minus ) 12 Colour = Black Opacity = 65 Blur = 25.00,
STEP 27 LAYERS >>> MERGE >>> MERGE VISIBLE LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name ,
STEP 28 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,

TESTERS RESULTS
