LADY BIRD FRAME
PSP9 to PSPX8

This tutorial was written by Jemima ~ NOVEMBER 2015
Copyright © 2015 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

k@rine_ dreams _Lady_Bird_1901_Aout_2011.pspimage
Save to a folder on your computer

********************************

Plugins

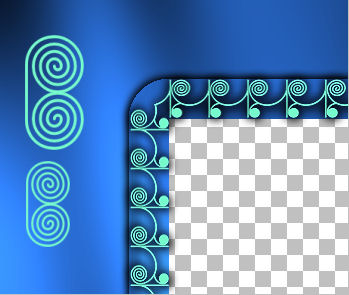

** EYE CANDY3 **
http://www.pircnet.com/downloads.html

** SIMPLE FILTERS **
download

** MURA'S FILTER MEISTER **
MuRa's Filter Meister - 2

** GREG'S FACTORY OUTPUT Vol 2 **
http://www.fleursauvage.be/utilitaire/filtres/filtres.htm

********************************

You can drag this hand down the page with you to keep your place in the tut.

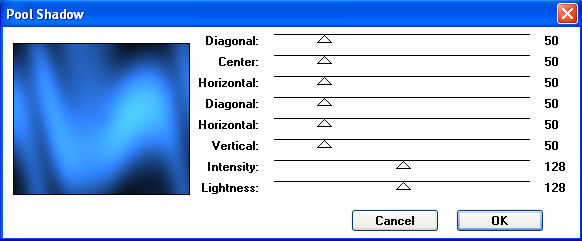

STEP 1 Open a new image 700 x 600 Transparent background PSP9: Colour Depth = 16 Million Colors (24bit) PSPX-X8: Colour Depth RGB = 8bits/channel Flood fill with BLUE #235cb3 EFFECTS >>> PLUGINS >>> Greg's Factory Output Vol II >>> Pool Shadow ,
STEP 2 Choose your SELECTION TOOL then click on the CUSTOM SELECTION symbol and enter these coordinates.

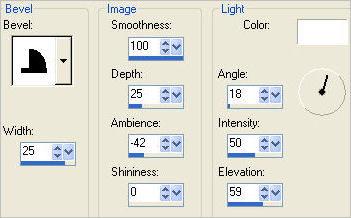

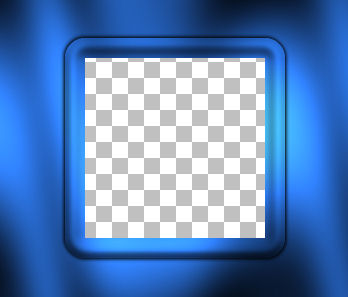

STEP 3 EDIT >>> CLEAR SELECTIONS >>> MODIFY >>> EXPAND = 40 EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
STEP 4 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 100 Blur = 12.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 2 Click OK DESELECT

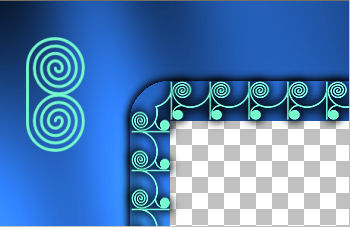

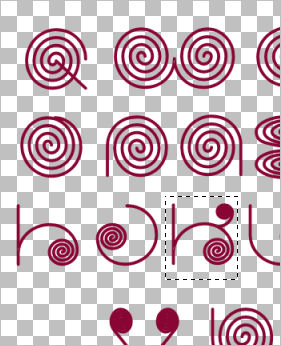

STEP 5 Open up the JFdecos.png image in your PSP workspace Choose your SELECTION TOOL Selection Type = Rectangle Mode = Replace Feather = 0 Antialias = UNChecked Select the Deco shown

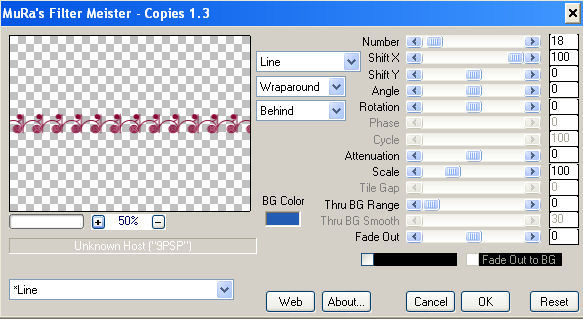

STEP 6 Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 50% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE EFFECTS >>> PLUGINS >>> MuRa's Meister >>> Copies >>> Line ,
STEP 7 Choose your SELECTION TOOL then click on the CUSTOM SELECTION symbol and enter these coordinates.

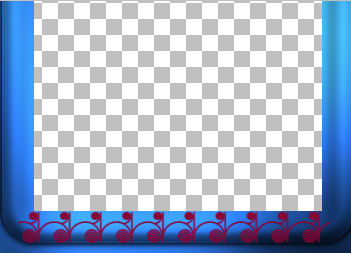

STEP 8 SELECTIONS >>> INVERT EDIT >>> CLEAR DESELECT LAYERS >>> DUPLICATE CLOSE Copy of Raster 2 ACTIVATE Raster 2 EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 3 Vertical Offset = - ( minus ) 200 Edge Mode = Transparent

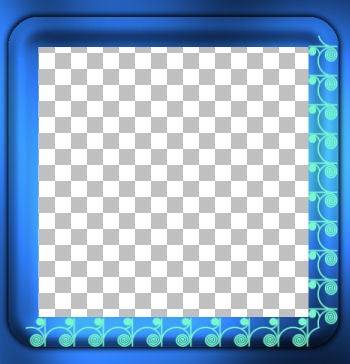

STEP 9 OPEN & ACTIVATE Copy of Raster 2 PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = LEFT 90 Ensure "All layers" is UNCHECKED PSPX - PSPX8: IMAGE >>> FREE ROTATE = LEFT 90 Ensure "All layers" is UNCHECKED EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 205 Vertical Offset = 0 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN ADJUST >>> COLOUR BALANCE >>> NEGATIVE IMAGE PSPX - X8: IMAGE >>> NEGATIVE IMAGE
STEP 10 LAYERS >>> DUPLICATE IMAGE >>> FLIP IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 100 Blur = 12.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 2 Click OK ADJUST >>> SHARPNESS >>> SHARPEN

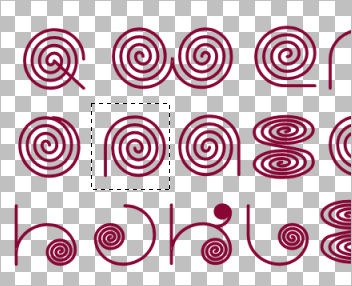

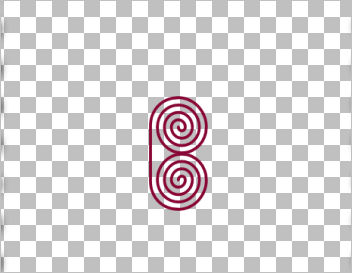

STEP 11 Back to the JFdecos.png image in your PSP workspace Choose your SELECTION TOOL Same settings Select the Deco shown
STEP 12 Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE LAYERS >>> DUPLICATE IMAGE >>> FLIP EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset = - ( minus ) 57 Edge Mode = Transparent LAYERS >>> MERGE >>> MERGE DOWN

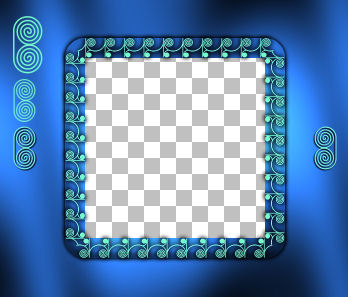

STEP 13 ADJUST >>> COLOUR BALANCE >>> NEGATIVE IMAGE PSPX - X8: IMAGE >>> NEGATIVE IMAGE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 295 Vertical Offset =235 Edge Mode = Transparent

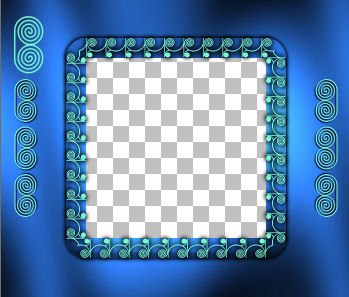

STEP 14 LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = - ( minus ) 80 Vertical Offset =- ( minus ) 60 Edge Mode = Transparent
STEP 15 LAYERS >>> DUPLICATE EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset =- ( minus ) 95 Edge Mode = Transparent ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 100 Blur = 2.00 LAYERS >>> DUPLICATE IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN
STEP 16 ACTIVATE Copy of Raster 3 ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 100 Blur = 2.00
STEP 17 ACTIVATE Raster 3 ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = Black Opacity = 100 Blur = 2.00 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR CLOSE Raster 1 and Raster 2 LAYERS >>> MERGE >>> MERGE VISIBLE OPEN Raster 1 and Raster 2

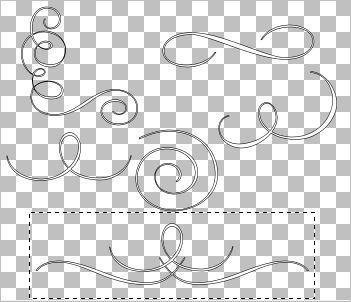

STEP 18 SAVE YOUR WORK Open up the JFscrolls6.png image in your PSP workspace Choose your SELECTION TOOL Same settings Select the Scroll shown

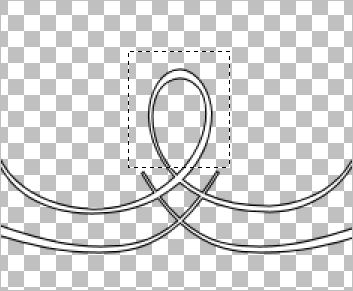

STEP 19 Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options Choose your SELECTION TOOL Same settings Select the section shown
STEP 20 EDIT >>> CLEAR DESELECT SELECTIONS >>> SELECT ALL SELECTIONS >>> FLOAT SELECTIONS >>> DEFLOAT SELECTIONS >>> MODIFY >>> EXPAND = 1 Flood fill with GREEN #4ea9a7 DESELECT IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE

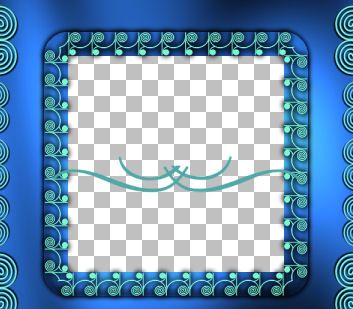

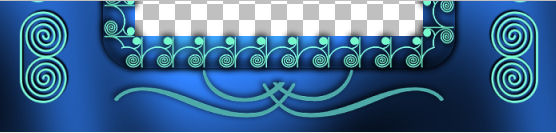

STEP 21 ADJUST >>> SHARPNESS >>> SHARPEN EFFECTS >>> IMAGE EFFECTS >>> OFFSET Horizontal Offset = 0 Vertical Offset =- ( minus ) 235 Edge Mode = Transparent EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = - ( minus ) 2 Colour = Black Opacity = 100 Blur = 12.00

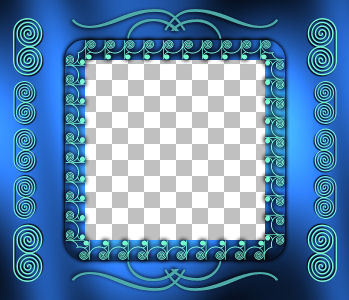

STEP 22 LAYERS >>> DUPLICATE IMAGE >>> FLIP LAYERS >>> MERGE >>> MERGE DOWN

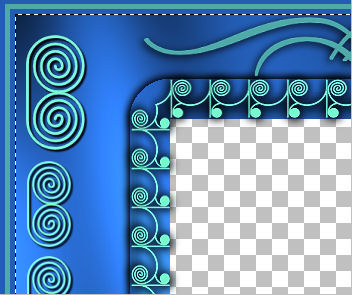

STEP 23 LAYERS >>> NEW RASTER LAYER Flood fill with BLUE #235cb3 SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 5 EDIT >>> CLEAR Flood fill with GREEN #4ea9a7 SELECTIONS >>> MODIFY >>> CONTRACT = 5 EDIT >>> CLEAR Flood fill with BLUE #235cb3 SELECTIONS >>> MODIFY >>> CONTRACT = 5 EDIT >>> CLEAR
STEP 24 EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 1 Colour = Black Opacity = 70 Blur = 0 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 1 Click OK DESELECT
STEP 25 ACTIVATE Raster 1 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - X8: Check CONTIGUOUS PSPX - X8: There is no " Sample Merged" Select the CENTRE transparent area ACTIVATE Raster 2 EDIT >>> CLEAR DESELECT
STEP 26 ACTIVATE Raster 4 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
STEP 27 ACTIVATE Raster 1 EDIT >>> Repeat Drop Shadow.. same settings EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
STEP 28 ACTIVATE Raster 4 EDIT >>> Repeat Drop Shadow.. LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image .
STEP 29 LAYERS >>> NEW RASTER LAYER Flood fill with BLUE #235cb3 LAYERS >>> ARRANGE >>> MOVE DOWN ,
STEP 30 Open up the k@rine_ dreams _Lady_Bird_1901_Aout_2011 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN
STEP 31 LAYERS >>> MERGE >>> MERGE VISIBLE LAYERS >>> NEW RASTER LAYER Select your TEXT tool and with a font of your choice add your name LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image ,
