GOSSAMER VEIL FRAME
PSP9 to PSPX6

This tutorial was written by Jemima ~ FEBRUARY 2014
Copyright © 2014 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

kittens.pspimage
diamonds.pspimage
diamond drop.pspimage
LHDYAB_supply1.pspimage
Save to a folder on your computer

********************************

Plugins

** EYE CANDY3 **
http://pspgroep.seniorennet.be/filterpagina.htm


********************************
You can drag this hand down the page with you to keep your place in the tut.

STEP 1 Open up the LHDYAB_supply1 image in your PSP workspace WINDOW >>> DUPLICATE MINIMIZE the original Image VIEW >>> RULERS LAYERS >>> NEW RASTER LAYER Flood fill with GREEN #284024 LAYERS >>> ARRANGE >>> MOVE DOWN ACTIVATE RASTER 1
STEP 2 EFFECTS >>> DISTORTION EFFECTS >>> PINCH Strength = 50% ADJUST >>> SHARPNESS >>> SHARPEN Select your RASTER DEFORM tool Mode = SCALE use default settings PSPX - X6:Select your PICK tool Drag the centre top node down to the 245 pixel mark on your left ruler Click the RESET RECTANGLE arrow Select another tool to disengage the DEFORMATION / PICK TOOL
STEP 3 ADJUST >>> SHARPNESS >>> SHARPEN LAYERS >>> DUPLICATE IMAGE >>> FLIP LAYERS >>> MERGE >>> MERGE DOWN IMAGE >>> RESIZE = 95% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN

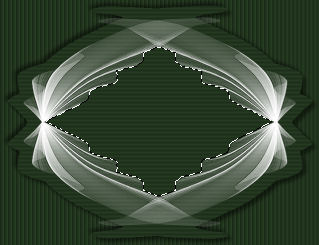

STEP 4 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - X6: Check CONTIGUOUS PSPX - X6: There is no " Sample Merged" Select the area outside the 'veil'.
STEP 5 ACTIVATE RASTER 2 EFFECTS >>> TEXTURE EFFECTS >>> BLINDS
STEP 6 SELECTIONS >>> INVERT LAYERS >>> NEW RASTER LAYER Flood fill with GREEN EFFECTS >>> TEXTURE EFFECTS >>> BLINDS Same settings BUT check Horizontal
STEP 7 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
STEP 8 EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135 DESELECT ACTIVATE RASTER 1 IMAGE >>> RESIZE = 90% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN
STEP 9 With your MAGIC WAND.... Same settings. Select the CENTRE area
STEP 10 SELECTIONS >>> MODIFY >>> EXPAND = 2 ACTIVATE RASTER 3 Hit your DELETE key ACTIVATE RASTER 2 Hit your DELETE key EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 315 DESELECT
STEP 11 SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 6 SELECTIONS >>> INVERT EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 2 Colour = WHITE Opacity = 70 Blur = 1.00 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 2 Click OK DESELECT
STEP 12 ACTIVATE RASTER 1 Maximize the LHDYAB_supply1 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options.
STEP 13 Select your RASTER DEFORM tool Mode = SCALE use default settings PSPX - X6:Select your PICK tool Drag the centre top node down to the 245 pixel mark on your left ruler Drag the centre left node in to the 30 pixel mark on your top ruler Drag the centre right node in to the 610 pixel mark on your top ruler Drag the centre bottom node up to the 470 pixel mark on your left ruler Click the RESET RECTANGLE arrow Select another tool to disengage the DEFORMATION / PICK TOOL ADJUST >>> SHARPNESS >>> SHARPEN

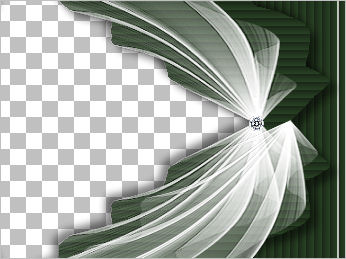

STEP 14 Open up the diamond drop image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN MORE Reposition with your MOVER tool
STEP 15 LAYERS >>> DUPLICATE Reposition with your MOVER tool
STEP 16 LAYERS >>> MERGE >>> MERGE DOWN EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings
STEP 17 Open up the diamonds image in your PSP workspace Activate Raster 6 Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 50% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN MORE Reposition with your MOVER tool
STEP 18 LAYERS >>> DUPLICATE Reposition with your MOVER tool
STEP 19 LAYERS >>> MERGE >>> MERGE DOWN LAYERS >>> DUPLICATE IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings LAYERS >>> MERGE >>> MERGE VISIBLE Save as .pspimage image
STEP 20 LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> MOVE DOWN Flood fill with WHITE Open up the kittens image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 80% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN Reposition UP slightly with your MOVER tool LAYERS >>> MERGE >>> MERGE VISIBLE
STEP 21 LAYERS >>> NEW RASTER LAYER Select your TEXT tool With a font of your choice add your name
STEP 22 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image

TESTERS RESULTS
