MASKED FRAME
PSP8 to PSPX3

This tutorial was written by Jemima ~ SEPTEMBER 2013
Copyright © 2013 ~ Jemima ~ All rights reserved

This was created using PSP9 but can be adapted for other versions of PSP.

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

Mythical-Creatures.pspimage
AnneStokesCopyright.pspimage
http://www.annestokes.com/gothic/
Save to a folder on your computer

********************************

Plugins

** EYE CANDY3 **
http://pspgroep.seniorennet.be/filterpagina.htm


********************************
You can drag this hand down the page with you to keep your place in the tut.

Open the supplied materials in PSP and minimize
STEP 1 In your MATERIALS PALETTE Load DARK TEAL ' #3b5558 ' in your foreground Load LIGHT TEAL ' #54868b ' in your background
STEP 2 Open a new image 600 x 500 Transparent background PSPX - X2: Colour Depth = 8bits/channel PSPX3-X6: Colour Depth RGB = 8bits/channel Flood fill with LIGHT TEAL LAYERS >>> NEW RASTER LAYER Flood fill with DARK TEAL LAYERS >>> NEW MASK LAYER >>> FROM IMAGE
STEP 3 LAYERS >>> MERGE >>> MERGE GROUP EFFECTS >>> 3D EFFECTS >>> DROP SHADOW Vertical & Horizontal offsets = 1 Colour = Black Opacity = 100 Blur = 0 Repeat Drop Shadow effect changing Vertical & Horizontal Offsets to - ( minus ) 1 Click OK
STEP 4 IMAGE >>> RESIZE = 80% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSPX6: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED EFFECTS >>> IMAGE EFFECTS >>> OFFSET
STEP 5 LAYERS >>> DUPLICATE IMAGE >>> MIRROR LAYERS >>> MERGE >>> MERGE DOWN
STEP 6 LAYERS >>> NEW RASTER LAYER Flood fill with DARK TEAL SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 3 Flood fill with LIGHT TEAL SELECTIONS >>> MODIFY >>> CONTRACT = 6 EFFECTS >>> 3D EFFECTS >>> OUTER BEVEL
STEP 7 Flood fill with DARK TEAL SELECTIONS >>> MODIFY >>> CONTRACT = 3 EDIT >>> CLEAR DESELECT EFFECTS >>> EDGE EFFECTS >>> ENHANCE
STEP 8 VIEW >>> RULERS LAYERS >>> NEW RASTER LAYER Choose your SELECTION TOOL Selection Type = Ellipse Mode = Replace Feather = 1 Antialias = Checked Starting at 300 pixels across and 250 pixels down drag your cursor to 500 pixels across and 460 pixels down and release Flood fill with DARK TEAL SELECTIONS >>> MODIFY >>> CONTRACT = 4 Flood fill with LIGHT TEAL SELECTIONS >>> MODIFY >>> CONTRACT = 8 Flood fill with DARK TEAL SELECTIONS >>> MODIFY >>> CONTRACT = 4 EDIT >>> CLEAR
STEP 9 ACTIVATE Raster 1 Hit your DELETE key ACTIVATE Group - Raster 2 Hit your DELETE key DESELECT
STEP 10 ACTIVATE Raster 3 EFFECTS >>> 3D EFFECTS >>> INNER BEVEL
STEP 11 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
STEP 12 EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135
STEP 13 ACTIVATE Raster 2 EDIT >>> Repeat Drop Shadow.. EDIT >>> Repeat Drop Shadow.. change DIRECTION to 315 LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 90% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPEN >>> SHARPEN
STEP 14 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135 Save as .pspimage image
You have a couple of options here ...

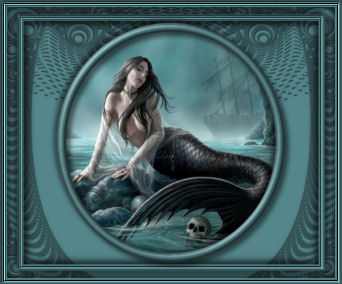

STEP 15 OPTION 1 ACTIVATE Raster 1 Open up the Mythical-Creatures image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options.
STEP 16 OPTION 2 Follow instructions in STEP 15 then LAYERS >>> ARRANGE >>> MOVE DOWN
STEP 17 Add your name Add copyright image LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image

TESTERS RESULTS
