MISTY MOUNTAINS
PSP8 - PSPX3



This tutorial was created by Jemima using PSP9 ~JULY 2012
BUT should be creatable using all versions of PSP
Copyright © 2012 ~ Jemima ~ All rights reserved

********************************

No artists or copyright infringement is intended on any of the tubes used in this tutorial.
The tubes were acquired in good faith as to their legality.
If there is a problem, please contact the author and the image/s will be removed.

You will need the following to complete this tutorial

Materials

JF-Stripes3.pspimage
JF_Mistymountains.pspimage
Polished Stone Corner-KRC2011.psp
Save to a folder on your computer

Save to your PSP Textures folder
PSP8: C:\Program Files\Jasc Software\Paint Shop Pro 8\Textures
PSP9: C:\Program Files\Jasc Software\Paint Shop Pro 9\Textures
PSPX: C:\Program Files\Corel\Corel Paint Shop Pro X\Textures
PSPXI / X2: C:\Program Files\Corel\Corel Paint Shop Pro Photo X2\Corel_15
PSPX3: C:\Program Files\Corel\X3\PSPClassic\Corel_15

Plugins

** EYE CANDY3 **
http://www.pircnet.com/downloads.html

** SIMPLE FILTERS **
download

*******************************

STEP 1 Open a new image 600 x 500 Transparent background PSPX - X2: Colour Depth = 8bits/channel PSPX3: Colour Depth RGB = 8bits/channel

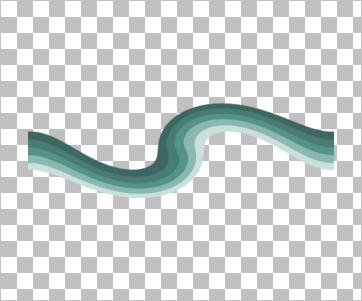

STEP 2 Open up the JF-Stripes3 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 85% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE EFFECTS >>> DISTORTION EFFECTS >>> TWIRL
STEP 3 | EFFECTS>>> GEOMETRIC EFFECTS >>> CIRCLE EDGE MODE = Transparent EDIT >>> Repeat Circle

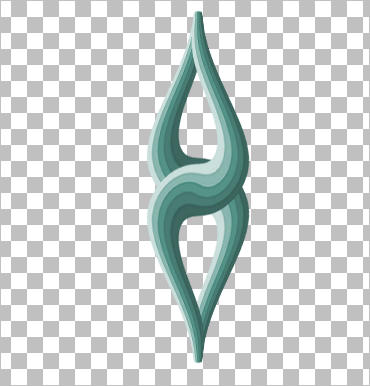

STEP 4 PSP8 - PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSPX3: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED EFFECTS>>> GEOMETRIC EFFECTS >>> CIRCLE EDIT >>> Repeat Circle
STEP 5 LAYERS >>> DUPLICATE IMAGE >>> FLIP Reposition with MOVER TOOL LAYERS >>> MERGE >>> MERGE DOWN

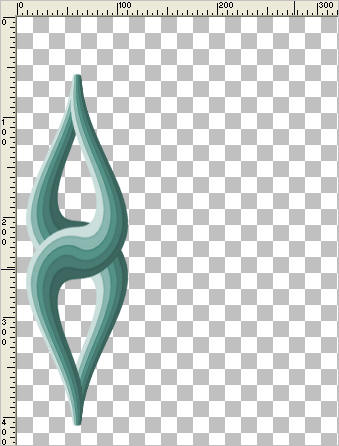

STEP 6 Reposition with your MOVER tool to the top left of your image
STEP 7 LAYERS >>> DUPLICATE PSP8 - PSP9: IMAGE >>> ROTATE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED PSPX - PSPX3: IMAGE >>> FREE ROTATE = RIGHT 90 Ensure "All layers" is UNCHECKED Reposition with your MOVER tool LAYERS >>> MERGE >>> MERGE DOWN
STEP 8 IMAGE >>> RESIZE = 73% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN Reposition with your MOVER tool
STEP 9 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR
STEP 10 With your MAGIC WAND Mode = Replace Match Mode = RGB Value Tolerance = 0 Feather = 0 Antialias = UNchecked Sample Merged = UNCHECKED PSP9 - X3: Check CONTIGUOUS PSPX - X3: There is no " Sample Merged" PSPX - X3: Use all layers = UNChecked Select the OUTER transparent area SELECTIONS >>> MODIFY >>> EXPAND = 6
STEP 11 LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> MOVE DOWN Flood fill with GREEN #4f8c81 EFFECTS >>> TEXTURE EFFECTS >>> TEXTURE Texture = platinumzilve3 DESELECT
STEP 12 ACTIVATE RASTER 2 With your MAGIC WAND Same settings Select the CENTRE transparent area SELECTIONS >>> MODIFY >>> EXPAND = 6 LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> MOVE DOWN SELECTIONS >>> INVERT Flood fill with GREEN #4f8c81 DESELECT
STEP 13 ACTIVATE RASTER 2 With your MAGIC WAND Same settings Select the OUTER frame area SELECTIONS >>> MODIFY >>> EXPAND = 6 ACTIVATE RASTER 4 EDIT >>> CLEAR DESELECT
STEP 14 EFFECTS >>> 3D EFFECTS >>> INNER BEVEL EDIT >>> Repeat Inner Bevel
STEP 15 Choose your SELECTION TOOL then click on the CUSTOM SELECTION symbol and enter these coordinates. ACTIVATE RASTER 3 SELECTIONS >>> INVERT EDIT >>> CLEAR DESELECT
STEP 16 SELECTIONS >>> SELECT ALL SELECTIONS >>> MODIFY >>> CONTRACT = 5 SELECTIONS >>> INVERT EFFECTS >>> 3D EFFECTS >>> OUTER BEVEL
STEP 17 SELECTIONS >>> INVERT SELECTIONS >>> MODIFY >>> CONTRACT = 25 SELECTIONS >>> INVERT EFFECTS >>> 3D EFFECTS >>> OUTER BEVEL Same settings DESELECT
STEP 18 ACTIVATE RASTER 2 LAYERS >>> DUPLICATE IMAGE >>> RESIZE = 85% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN With your MAGIC WAND Same settings Select the CENTRE transparent area SELECTIONS >>> MODIFY >>> EXPAND = 6
STEP 19 LAYERS >>> NEW RASTER LAYER LAYERS >>> ARRANGE >>> MOVE DOWN EDIT >>> Repeat Move Layer Down SELECTIONS >>> INVERT Flood fill with GREEN DESELECT ACTIVATE RASTER 2 With your MAGIC WAND Same settings Select the OUTER frame area
STEP 20 ACTIVATE RASTER 5 EDIT >>> CLEAR DESELECT EFFECTS >>> 3D EFFECTS >>> INNER BEVEL Same settings ACTIVATE TOP LAYER
STEP 21 Open up the Polished Stone Corner-KRC2011 image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 60% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE ADJUST >>> SHARPNESS >>> SHARPEN MORE ADJUST >>> HUE & SATURATION >>> COLORIZE Reposition with your MOVER tool
STEP 22 EFFECTS >>> PLUGINS >>> SIMPLE >>> TOP LEFT MIRROR EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW
STEP 23 ACTIVATE RASTER 1 Flood fill with LIGHT GREEN #c8ddda ACTIVATE Copy of Raster 2 EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW Same settings EDIT >>> Repeat Drop Shadow.. change DIRECTION to 135 CLOSE RASTER 1 LAYERS >>> MERGE >>> MERGE VISIBLE OPEN and ACTIVATE RASTER 1 Save as .pspimage image
STEP 24 Open up the JF_Mistymountains image in your PSP workspace Right click on the Title Bar and select COPY from the options Right click on the Title Bar of your frame image and select PASTE AS NEW LAYER from the options. IMAGE >>> RESIZE = 75% Ensure "Resize all layers" is UNCHECKED Resample using WEIGHTED AVERAGE

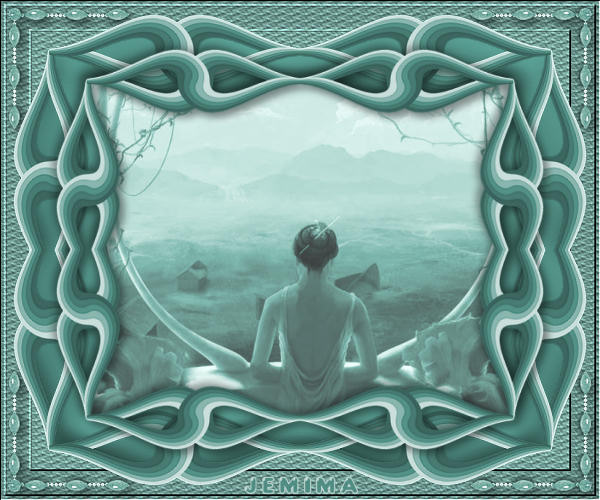

STEP 25 LAYERS >>> MERGE >>> MERGE ALL (Flatten) Save as .jpg image

Testers Results
