MULTICOLOUR FRAME
PSP8/9/X

This tutorial was written by Jemima ~ May 2007
Copyright © 2007/8 ~ Jemima ~ All rights reserved

********************************

You will need the following to complete this tutorial

Materials

RIGHT CLICK >>> SAVE TARGET AS

Tubed by Monique42_F901.psp

MJR_MB-reiger.psp


Save to a folder on your computer

Plugins

NONE


********************************

Open up your " abstract 33 " image in your PSP workspace
WINDOW >>> DUPLICATE
Close the original Image
LAYERS >>> Promote background Layer


SELECTIONS >>> SELECT ALL
SELECTIONS >>> MODIFY >>> CONTRACT = 40
EDIT >>> CLEAR
DESELECT

LAYERS >>> DUPLICATE
IMAGE >>> RESIZE = 85%
Ensure "Resize all layers" is UNCHECKED




LAYERS >>> DUPLICATE
IMAGE >>> RESIZE = 90%
Ensure "Resize all layers" is UNCHECKED

LAYERS >>> DUPLICATE
IMAGE >>> RESIZE = 85%
Ensure "Resize all layers" is UNCHECKED


Rename the layers as shown below

..

ACTIVATE RASTER 1

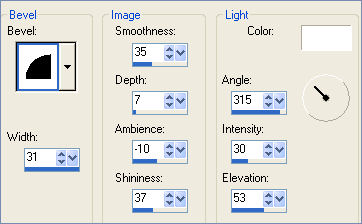

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL

..


ADJUST >>> SHARPNESS >>> SHARPEN MORE

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK

LAYERS >>> ARRANGE >>> BRING TO TOP



ACTIVATE RASTER 2

IMAGE >>> MIRROR

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL

..


LAYERS >>> ARRANGE >>> MOVE UP (TWICE)

..

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Use the same settings
Click OK

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to 1
Click OK


ACTIVATE RASTER 3

EFFECTS >>> EDGE EFFECTS >>> ENHANCE MORE (TWICE)

LAYERS >>> ARRANGE >>> MOVE UP






EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Use the same settings
Click OK

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to 1
Click OK




ACTIVATE RASTER 4

IMAGE >>> MIRROR

EFFECTS >>> TEXTURE EFFECTS >>> BLINDS



ADJUST >>> SHARPNESS >>> SHARPEN

IMAGE >>> FLIP



ACTIVATE RASTER 2

IMAGE >>> FLIP



ACTIVATE RASTER 4

With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9/X: Check CONTIGUOUS
PSPX: There is no " Sample Merged"
PSPX: Use all layers = UNChecked

Select the CENTRE transparent area

SELECTIONS >>> INVERT

LAYERS >>> NEW RASTER LAYER

LAYERS >>> ARRANGE >>> MOVE DOWN

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 4
Colour = Black
Opacity = 60
Blur = 10.00
DESELECT

Save as .psp image


LAYERS >>> NEW RASTER LAYER
LAYERS >>> ARRANGE >>> SEND TO BOTTOM

Flood fill with BLUE " #8f93d3 "



Open up the " Tubed by Monique42_F901 " tube

Right click on the Title Bar and select COPY from the options

Go to your frame image .... Right click on the Title Bar
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE = 50%
Ensure "Resize all layers" is UNCHECKED

EFFECTS >>> TEXTURE EFFECTS >>> TEXTURE



ADJUST >>> SHARPNESS >>> SHARPEN



LAYERS >>> MERGE >>> MERGE VISIBLE

Open up the " MJR_MB-reiger " tube

Right click on the Title Bar and select COPY from the options

Go to your frame image .... Right click on the Title Bar
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE = 25%
Ensure "Resize all layers" is UNCHECKED

With your MOVER tool reposition the image.



EFFECTS >>> 3D EFFECTS >>> INNER BEVEL



ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 4
Colour = Black
Opacity = 60
Blur = 10.00



LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image

TESTERS RESULTS
