MUSICALE
PSP8/9/X

This tutorial was written by Jemima ~ January 2007
Copyright 2007 ~ Jemima ~ All rights reserved

********************************

This was created using PSP9 but can be adapted for other versions of PSP.

You will need the following to complete this tutorial

Materials
LEFT CLICK >>> SAVE

Yoka-Leaf-220406-smaller.psp
template5.psp
Nancy~AnnaHutchings~WearyEyz.psp
Keyboard_molly.psp
Save to a folder on your computer

Save to your PSP Textures folder

Plugins

** EYE CANDY3 **

http://www.pircnet.com/downloads.html
OR
http://www.fleursauvage.be/utilitaire/filtres/filtres.htm


********************************
Open a new image 500 x 400
Transparent background
PSPX: Colour Depth = 8bits/channel


Flood fill with MAROON "
#882b08 "

Open up the
Yoka-Leaf-220406-smaller.psp image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE = 75%
Ensure "Resize all layers" is UNCHECKED

ADJUST >>> SHARPNESS >>> SHARPEN

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to 1
Click OK

EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> DROP SHADOW



LAYERS >>> MERGE >>> MERGE VISIBLE

IMAGE >>> RESIZE = 80%
Ensure "Resize all layers" is UNCHECKED

ADJUST >>> SHARPNESS >>> SHARPEN

Reposition with your MOVER tool




With your MAGIC WAND
Mode = Replace
Match Mode = RGB Value
Tolerance = 0
Feather = 0
Antialias = UNchecked
Sample Merged = UNCHECKED
PSP9/X: Check CONTIGUOUS
PSPX: There is no " Sample Merged"

PSPX: Use all layers = UNChecked


Select the transparent area

LAYERS >>> NEW RASTER LAYER

LAYERS >>> ARRANGE >>> MOVE DOWN

Flood fill with ORANGE " #f49420 "

LAYERS >>> NEW RASTER LAYER


Open up the
template5.psp image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE INTO SELECTION from the options.



EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK

ACTIVATE THE MERGED LAYER

SELECTIONS >>> INVERT

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 2
Colour = Black
Opacity = 60
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 2
Click OK

ACTIVATE RASTER 2

With your MAGIC WAND
Same settings

Select the bottom right corner

ACTIVATE RASTER 1

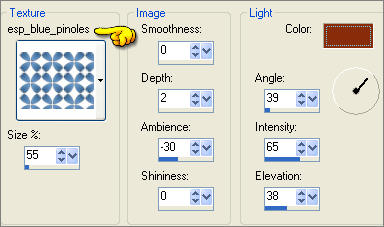

EFFECTS >>> TEXTURE EFFECTS >>> TEXTURE
COLOUR = "
#882b08 "



EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK

DESELECT



ACTIVATE RASTER 2

With your MAGIC WAND
Same settings

Select the bottom left corner



ACTIVATE RASTER 1

EFFECTS >>> TEXTURE EFFECTS >>> BLINDS
COLOUR = "
#792507 "



EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Use the same settings
Click OK

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to 1
Click OK
DESELECT

ACTIVATE RASTER 2

With your MAGIC WAND
Same settings

Select the top right corner



ACTIVATE RASTER 1

EFFECTS >>> TEXTURE EFFECTS >>> BLINDS
Same settings EXCEPT this time UNCHECK "HORIZONTAL"

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Use the same settings
Click OK

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to 1
Click OK
DESELECT



ACTIVATE RASTER 2

With your MAGIC WAND
Same settings

Select the 2 areas shown (use your SHIFT KEY)

Flood fill with "
#e3b68d "

ADJUST >>> ADD/REMOVE NOISE >>> ADD NOISE

.

EFFECTS >>> EDGE EFFECTS >>> ENHANCE MORE
to look like the image above right.

DESELECT

ACTIVATE THE MERGED LAYER

Open up the
Nancy~AnnaHutchings~WearyEyz.psp image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE = 45%
Ensure "Resize all layers" is UNCHECKED

Reposition with your MOVER tool



EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> PERSPECTIVE SHADOW



Choose your FREEHAND SELECTION TOOL
Selection Type = Point to Point
Mode = Replace
Feather = 0
Antialias = UNChecked

Select the area shown below



Click inside the 'marching ants' to select the falling leaves.

EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0

DESELECT


Open up the
Keyboard_molly.psp image in your PSP workspace

Right click on the Title Bar and select COPY from the options

Right click on the Title Bar of your tag image
and select PASTE AS NEW LAYER from the options.

IMAGE >>> RESIZE = 45%
Ensure "Resize all layers" is UNCHECKED

LAYERS >>> ARRANGE >>> MOVE DOWN

Reposition with your MOVER tool




In your LAYER PALETTE
CHANGE the BLEND MODE to MULTIPLY

EFFECTS >>> PLUGINS >>> EYE CANDY 3 >>> PERSPECTIVE SHADOW
Same settings



ACTIVATE RASTER 3

LAYERS >>> NEW RASTER LAYER

SELECTIONS >>> SELECT ALL
SELECTIONS >>> MODIFY >>> CONTRACT = 6
SELECTIONS >>> INVERT

Flood fill with MAROON "
#882b08 "

EFFECTS >>> 3D EFFECTS >>> INNER BEVEL



EFFECTS >>> 3D EFFECTS >>> DROP SHADOW
Vertical & Horizontal offsets = 1
Colour = Black
Opacity = 60
Blur = 0

Repeat Drop Shadow effect changing
Vertical & Horizontal Offsets to - ( minus ) 1
Click OK

DESELECT

EFFECTS >>> EDGE EFFECTS >>> ENHANCE


LAYERS >>> MERGE >>> MERGE ALL (Flatten)

Save as .jpg image
